• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒鎢鋼
  • 適合於高速及高硬度持久切削
  • 6XZ
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Nano Micro Grain Flute Helix Angle55° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA

6 Long Flute High Helix End Mills

cutting tools-6 Long Flute High Helix End Mills
unit:mm

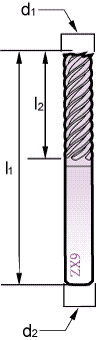

Order Code Φd1 (h10) I2 I1 Φd2 (h6)
6XZ060 6.0 30.0 75 6.0
6XZ080 8.0 40.0 100 8.0
6XZ100 10.0 40.0 100 10.0
6XZ120 12.0 45.0 150 12.0
6XZ160 16.0 65.0 150 16.0
6XZ200 20.0 65.0 150 20.0
特殊規格
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
6XZ040 4 22 57 6
6XZ040E 4 22 75 6
6XZ040F 4 22 100 6
6XZ040H 4 22 150 6
6XZ040I 4 22 200 6
6XZ050 5 26 57 6
6XZ050E 5 26 75 6
6XZ050F 5 26 100 6
6XZ050H 5 26 150 6
6XZ050I 5 26 200 6
6XZ060F 6 30 100 6
6XZ060H 6 30 150 6
6XZ060I 6 30 200 6
6XZ060J 6 30 250 6
6XZ060K 6 30 300 6
6XZ080F 8 40 100 8
6XZ080H 8 40 150 8
6XZ080I 8 40 200 8
6XZ080J 8 40 250 8
6XZ080K 8 40 300 8
6XZ100H 10 40 150 10
6XZ100I 10 40 200 10
6XZ100J 10 40 250 10
6XZ100K 10 40 300 10
6XZ120H 12 45 150 12
6XZ120I 12 45 200 12
6XZ120J 12 45 250 12
6XZ120K 12 45 300 12
6XZ140H 14 60 150 16
6XZ140I 14 60 200 16
6XZ140J 14 60 250 16
6XZ140K 14 60 300 16
6XZ160H 16 65 150 16
6XZ160I 16 65 200 16
6XZ160J 16 65 250 16
6XZ160K 16 65 300 16
6XZ180H 18 65 150 20
6XZ180I 18 65 200 20
6XZ180J 18 65 250 20
6XZ180K 18 65 300 20
6XZ200H 20 65 150 20
6XZ200I 20 65 200 20
6XZ200J 20 65 250 20
6XZ200K 20 65 300 20
6XZ250H 25 75 150 25
6XZ250I 25 75 200 25
6XZ250J 25 75 250 25
6XZ250K 25 75 300 25
cutting tools-6 Long Flute High Helix End Mills
6 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
NMG Long Flute End Mills / 奈米微粒钨钢长刃6刃数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
