• Solid Carbide - Super Micro Grain
  • Great for speedy and general cutting
  • 極細超微粒鎢鋼
  • 適合於高速及各式切削
  • 4TW
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Super Micro Grain Flute Helix Angle45° Coating-AlTiN+PLC Hardness-HRC65

4 Flute End Mills

cutting tools-4 Flute End Mills
unit:mm

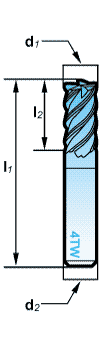

Order Code d1 l2 l1 d2
4TW010 1.0 3 50 4
4TW015 1.5 4 50 4
4TW020 2.0 6 50 4
4TW030 3.0 8 50 6
4TW040 4.0 11 50 6
4TW050 5.0 13 50 6
4TW060 6.0 16 50 6
4TW080 8.0 20 60 8
4TW100 10.0 25 75 10
4TW120 12.0 30 75 12
4TW160 16.0 45 100 16
4TW200 20.0 45 100 20
cutting tools-4 Flute End Mills
4 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
SMG End Mills /極細超微粒鎢鋼4刃數控銑刀 / Schaftfraser / Fraises / Fresas con mango / Frese
