• Solid Carbide - Super Micro Grain
  • Great for speedy and general cutting
  • 極細超微粒鎢鋼
  • 適合於高速及各式切削
  • 4Y
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Super Micro Grain Flute Helix Angle50° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA DIN 6527 L

4 Flute High Helix End Mills

cutting tools-4 Flute High Helix End Mills
unit:mm

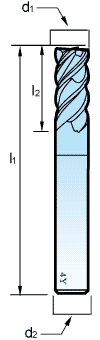

Order Code Φd1 (h10) I2 I1 Φd2 (h6)
4Y040 4.0 11.0 57 6.0
4Y050 5.0 13.0 57 6.0
4Y060 6.0 13.0 57 6.0
4Y080 8.0 19.0 63 8.0
4Y100 10.0 22.0 72 10.0
4Y120 12.0 26.0 83 12.0
4Y160 16.0 32.0 92 16.0
4Y200 20.0 38.0 104 20.0
cutting tools-4 Flute High Helix End Mills
4 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
