• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒鎢鋼
  • 適合於高速及高硬度持久切削
  • 2XZ
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Nano Micro Grain Flute Helix Angle35° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA

2 Long Flute End Mills

cutting tools-2 Long Flute End Mills
unit:mm

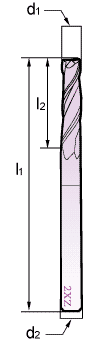

Order Code Φd1(h10) I2 I1 Φd2(h6)
2XZ020 2.0 15.0 75 6.0
2XZ030 3.0 20.0 75 6.0
2XZ040 4.0 25.0 75 6.0
2XZ050 5.0 30.0 75 6.0
2XZ060 6.0 30.0 75 6.0
2XZ080 8.0 40.0 100 8.0
2XZ100 10.0 40.0 100 10.0
2XZ120 12.0 45.0 100 12.0
Special specifications
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
2XZ040F 4 25 100 6
2XZ040H 4 25 150 6
2XZ040I 4 25 200 6
2XZ050F 5 30 100 6
2XZ050H 5 30 150 6
2XZ050I 5 30 200 6
2XZ060F 6 30 100 6
2XZ060H 6 30 150 6
2XZ060I 6 30 200 6
2XZ060J 6 30 250 6
2XZ060K 6 30 300 6
2XZ080H 8 40 150 8
2XZ080I 8 40 200 8
2XZ080J 8 40 250 8
2XZ080K 8 40 300 8
2XZ100H 10 40 150 10
2XZ100I 10 40 200 10
2XZ100J 10 40 250 10
2XZ100K 10 40 300 10
2XZ120H 12 45 150 12
2XZ120I 12 45 200 12
2XZ120J 12 45 250 12
2XZ120K 12 45 300 12
2XZ140H 14 50 150 16
2XZ140I 14 50 200 16
2XZ140J 14 50 250 16
2XZ140K 14 50 300 16
2XZ160H 16 60 150 16
2XZ160I 16 60 200 16
2XZ160J 16 60 250 16
2XZ180 18 60 100 18
2XZ180H 18 60 150 20
2XZ180I 18 60 200 20
2XZ180J 18 60 250 20
2XZ200H 20 60 150 20
2XZ200I 20 60 200 20
2XZ200J 20 60 250 20
2XZ250H 25 70 150 25
2XZ250I 25 70 200 25
2XZ250J 25 70 250 25
cutting tools-2 Long Flute End Mills
2 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
NMG Long Flute End Mills / 奈米微粒钨钢长刃2刃数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
