• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒鎢鋼
  • 適合於高速及高硬度持久切削
  • 2RZ
  • Corner Radius End Mills
  • 圓鼻立銑刀
  • Material-Solid Carbide - Nano Micro Grain Flute Helix Angle35° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA DIN 6527 L R angle

2 Flute Corner Radius End Mills

cutting tools-2 Flute Corner Radius End Mills
unit:mm

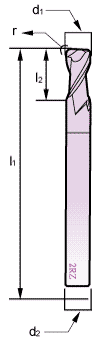

Order Code Φd1(h10) r I2 I1 Φd2(h6)
2RZ0205 2.0 0.5 6.0 38 3.0
2RZ0255 2.5 0.5 7.0 38 3.0
2RZ0305 3.0 0.5 7.0 57 6.0
2RZ0405 4.0 0.5 8.0 57 6.0
2RZ0405E 4.0 0.5 8.0 75 6.0
2RZ0505 5.0 0.5 10.0 57 6.0
2RZ0605 6.0 0.5 10.0 57 6.0
2RZ0605F 6.0 0.5 10.0 100 6.0
2RZ0610 6.0 1.0 10.0 57 6.0
2RZ0610F 6.0 1.0 10.0 100 6.0
2RZ0805 8.0 0.5 16.0 63 8.0
2RZ0805F 8.0 0.5 16.0 100 8.0
2RZ0810 8.0 1.0 16.0 63 8.0
2RZ0810F 8.0 1.0 16.0 100 8.0
2RZ1005 10.0 0.5 19.0 72 10.0
2RZ1005F 10.0 0.5 19.0 100 10.0
2RZ1010 10.0 1.0 19.0 72 10.0
2RZ1010F 10.0 1.0 19.0 100 10.0
2RZ1020 10.0 2.0 19.0 72 10.0
2RZ1020F 10.0 2.0 19.0 100 10.0
2RZ1205 12.0 0.5 22.0 83 12.0
2RZ1210 12.0 1.0 22.0 83 12.0
2RZ1210F 12.0 1.0 22.0 100 12.0
2RZ1220 12.0 2.0 22.0 83 12.0
2RZ1220F 12.0 2.0 22.0 100 12.0
2RZ1605 16.0 0.5 26.0 92 16.0
2RZ1610 16.0 1.0 26.0 92 16.0
cutting tools-2 Flute Corner Radius End Mills
2 Flute Corner Radius End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
NMG Corner Radius End Mills / 奈米微粒鎢鋼2刃圓鼻角數控銑刀 / Schaftfraser / Fraises / Fresas con mango / Frese
