• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒鎢鋼
  • 適合於高速及高硬度持久切削
  • 3CZ
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Nano Micro Grain Flute Helix Angle55° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA DIN 6527 L

3 Flute End Mills for Soft Material

cutting tools-3 Flute End Mills for Soft Material
unit:mm

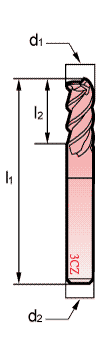

Order Code Φd1 (h10) I2 I1 Φd2 (h6)
3CZ030 3.0 7.0 57 6.0
3CZ040 4.0 8.0 57 6.0
3CZ050 5.0 10.0 57 6.0
3CZ060 6.0 10.0 57 6.0
3CZ080 8.0 16.0 63 8.0
3CZ100 10.0 19.0 72 10.0
3CZ120 12.0 22.0 83 12.0
3CZ160 16.0 26.0 92 16.0
3CZ200 20.0 32.0 104 20.0
cutting tools-3 Flute End Mills for Soft Material
3 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
NMG End Mills / 奈米微粒钨钢3刃铜铝用数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
