• Metal Ceramic End Mills
  • Content of work material : Ni20~50%
  • Metal Ceramic End Mills
  • 適合切削工件含Ni20~50%之切削
  • 2MCB
  • Ball Nose End Mills
  • 不銹鋼專用刀具
  • Material:Metal Ceramic Flute Helix Angle 35° Hardness-HRC65

Metal Ceramic-2 Flute Ball Nose End Mills

unit:mm

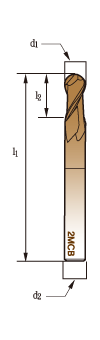

Order Code Φd1 (e8/h10) I2 I1 Φd2 (h6)
2MC010B  R0.5  2 48 6
2MC020B  R1  4 48 6
2MC030B  R1.5  6 48 6
2MC040B  R2  8 48 6
2MC060B  R3  12 48 6
2MC080B  R4  16 60 8
2MC100B  R5  20 68 10
cut tool-2 Flute Ball Nose End Mills
2 Flute Ball Nose End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
Metal Ceramic End Mills /End Mills/ 2 刃 圓頭數控銑刀 /Cutter Specialized In Cutting Stainless Steel/Schaftfraser / Fraises / Fresas con mango / Frese
