• Solid Carbide - Super Micro Grain
  • Great for speedy and general cutting
  • 極細超微粒鎢鋼
  • 適合於高速及各式切削
  • 2DMOT
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Super Micro Grain Flute Helix Angle35° Coating-AlTiN+PLC Hardness-HRC65

2 Flute Miniature End Mills

cutting tools-2 Flute Miniature End Mills
unit:mm

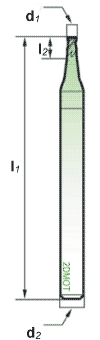

Order Code d1 l2 l1 d2
2DMOT002 0.2 0.4 40 3
2DMOT003 0.3 0.6 40 3
2DMOT004 0.4 0.8 40 3
2DMOT005 0.5 1.0 40 3
2DMOT006 0.6 1.2 40 3
2DMOT008 0.8 1.6 40 3
2DMOT010 1.0 2.5 40 3
2DMOT012 1.2 3.0 40 3
2DMOT014 1.4 3.0 40 3
2DMOT015 1.5 4.0 40 3
2DMOT016 1.6 4.0 40 3
2DMOT018 1.8 5.0 40 3
2DMOT020 2.0 6.0 40 3
cutting tools-2 Flute Miniature End Mills
2 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
Small Shank End Mills / 鎢鋼 2 刃 微小徑 數控銑刀 / Schaftfraser / Fraises / Fresas con mango / Frese
