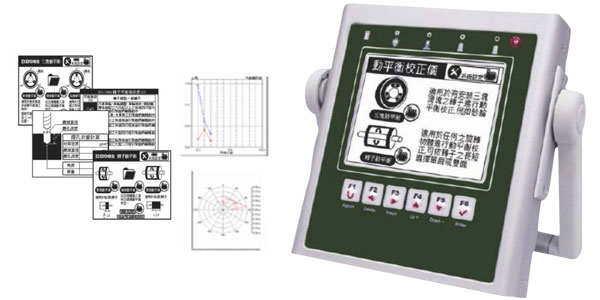

Dynamic Balance Instrument

手提式双面動平衡校正儀

background
Dynamic Balance Instrument-機械工具
  • Feature
    • USB for program upgrade/Date storage/Report print.
    • Action USB flash card,easy data access.
    • Establish lithium battery,extendable to use without power adaptor.
    • Single or dual plane balancing function.
    • Portable type rotors dynamic balancer on line.
    • Increase/ Decrease the weight approach to the implementation of Dynamic Balancing adjustment.
    • Component calculation/Depth calculation function.
    • Built-in ISO-1940 Rotor balance grades.
  • Optional function:
    • Balance analysis with spectrum
  • Function & Specification
    • Measurement range:
      (G)：0.0001~25G
      (mm/s)：0.01~1,300 mm/s
      (μm)：0.01~6,000μm
    • Amplitude Resolution:0.1mg
    • Phase Resolution:0.1°
    • RPM Range:100~60,000rpm
    • Vibration Unit:
      (G)：0-P
      (mm/s)：0-P
      (μm)：P-P
    • Pickup Range:4 cm~100 cm
    • CPU:Vortex 300MHz(32bits)
    • Display:320X240 dot LCD,LED Eack-light,Touch Screen
    • Temperature Range:0°C ~ 50°C
    • Power Consumption:7W
    • Battery:Li-on Rechargeable Battery
    • Power:100~240V AC Adaptor 50/60Hz
    • Weight:1.25 kg
    • Storage Interface:USB card
  • Accessory
    • Dynamic Balance Instrument X 1
    • Accelerometer X 2
    • MB504 Magnetic Base X 2
    • Laser Sensors X 1
    • Power Adaptor X 1
    • Signal cable X 2
    • Instruction CD-ROM X 1
    • Instruction Manual X 1
    • Carrier Box X 1
