胶合板圆锯片

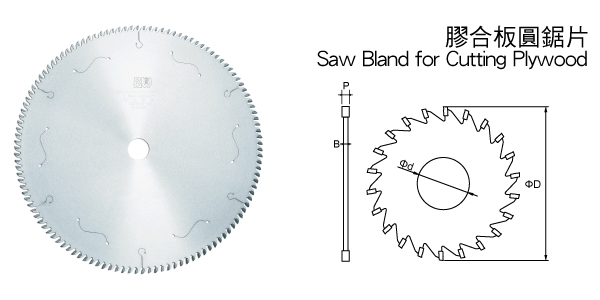

Saw Bland for Cutting Plywood

background
胶合板圆锯片
  • 用途：此锯片设计适用於各类胶合板切割。
  • 材质：采用日本钢板以及钨钢
  • 特色：低噪音，锋利的牙齿，精度高

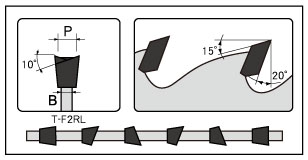

  • 刀刃形式：

    圆锯片

  • ※各式规格皆订制，最低订购量50PCS
unit:mm
型号
 外径 刃厚度 本体厚
 内孔
 齿数
齿型
ΦD P B Φd Z TP
WP20525254080 205 2.5 1.8 25.4 80 T-F2RL
WP23030254080 230 3.0 2.2 25.4 80 T-F2RL
WP25030254080 250 3.0 2.2 25.4 80 T-F2RL
WP25030254120 250 3.0 2.2 25.4 120 T-F2RL
WP25030300080 250 3.0 2.2 30.0 80 T-F2RL
WP25030300100 250 3.0 2.2 30.0 100 T-F2RL
WP25030300120 250 3.0 2.2 30.0 120 T-F2RL
WP25032300100 250 3.2 2.2 30.0 100 T-F2RL
WP25032300120 250 3.2 2.2 30.0 120 T-F2RL
WP25530254100 255 3.0 2.2 25.4 100 T-F2RL
WP25530254120 255 3.0 2.2 25.4 120 T-F2RL
WP30032300100 300 3.2 2.2 30.0 100 T-F2RL
WP30032300120 300 3.2 2.2 30.0 120 T-F2RL
WP30530254100 305 3.0 2.2 25.4 100 T-F2RL
WP30530254120 305 3.0 2.2 25.4 120 T-F2RL
WP30530300100 305 3.0 2.2 30.0 100 T-F2RL
WP30530300120 305 3.0 2.2 30.0 120 T-F2RL
WP30532254100 305 3.2 2.2 25.4 100 T-F2RL
WP30532254120 305 3.2 2.2 25.4 120 T-F2RL
WP30532300100 305 3.2 2.2 30.0 100 T-F2RL
WP30532300120 305 3.2 2.2 30.0 120 T-F2RL
WP35530254100 355 3.0 2.2 25.4 100 T-F2RL
WP35530254120 355 3.0 2.2 25.4 120 T-F2RL
WP35532300100 355 3.2 2.2 30.0 100 T-F2RL
WP35532300120 355 3.2 2.2 30.0 120 T-F2RL
WP38032300100 380 3.2 2.2 30.0 100 T-F2RL
WP40035254096 400 3.5 2.5 25.4 96 T-F2RL
WP40536254120 405 3.6 2.8 25.4 120 T-F2RL
WP45040254120 450 4.0 3.0 25.4 120 T-F2RL
WP50548300120 505 4.8 4.0 30.0 120 T-F2RL
