• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒钨钢
  • 适合於高速及高硬度持久切削
  • 2BZ
  • Ball Nose End Mills
  • 钨钢球头立铣刀
  • 材质-奈米微粒钨钢 刀刃螺旋角度35度 镀层-AlTiN+PLC 工件硬度-HRC65 刀柄硬度标准

二刃圆头铣刀

切削刀具-二刃圆头铣刀
unit:mm

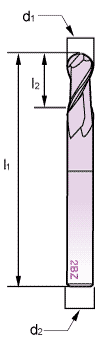

Order Code Φd1 (e8/h10) I2 I1 Φd2 (h6)
2BZ002 R0.1 0.4 38 3.0
2BZ003 R0.15 0.6 38 3.0
2BZ004 R0.2 0.8 38 3.0
2BZ005 R0.25 1.0 38 3.0
2BZ006 R0.3 1.2 38 3.0
2BZ007 R0.35 1.4 38 3.0
2BZ008 R0.4 1.6 38 3.0
2BZ010 R0.5 2.0 38 3.0
2BZ012 R0.6 2.4 38 3.0
2BZ014 R0.7 2.8 38 3.0
2BZ015 R0.75 3.0 38 3.0
2BZ016 R0.8 3.2 38 3.0
2BZ018 R0.9 3.6 38 3.0
2BZ020 R1 4.0 38 3.0
2BZ020E R1 4.0 75 6.0
2BZ030 R1.5 6.0 50 6.0
2BZ030E R1.5 6.0 75 6.0
2BZ030F R1.5 6.0 100 6.0
2BZ040 R2 8.0 50 6.0
2BZ040E R2 8.0 75 6.0
2BZ040F R2 8.0 100 6.0
2BZ050 R2.5 10.0 50 6.0
2BZ060 R3 12.0 50 6.0
2BZ060E R3 12.0 75 6.0
2BZ060F R3 12.0 100 6.0
2BZ070 R3.5 14.0 60 8.0
2BZ070E R3.5 14.0 75 8.0
2BZ070F R3.5 14.0 100 8.0
2BZ080 R4 16.0 60 8.0
2BZ080E R4 16.0 75 8.0
2BZ080F R4 16.0 100 8.0
2BZ100 R5 20.0 75 10.0
2BZ100F R5 20.0 100 10.0
2BZ100H R5 20.0 150 10.0
2BZ120 R6 24.0 75 12.0
2BZ120F R6 24.0 100 12.0
2BZ120H R6 24.0 150 12.0
2BZ160 R8 32.0 100 16.0
2BZ160I R8 32.0 200 16.0
2BZ200 R10 40.0 100 20.0
2BZ200I R10 40.0 200 20.0
特殊規格
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
2BZ010E R0.5 2 75 3
2BZ010E-d4 R0.5 2 75 4
2BZ010F R0.5 2 100 3
2BZ010F-d4 R0.5 2 100 4
2BZ010H R0.5 2 150 3
2BZ010H-d4 R0.5 2 150 4
2BZ020E R1 4 75 3
2BZ020E-d4 R1 4 75 4
2BZ020E-d6 R1 4 75 6
2BZ020F R1 4 100 3
2BZ020F-d4 R1 4 100 4
2BZ020H R1 4 150 3
2BZ020H-d4 R1 4 150 4
2BZ00E R1.5 6 75 3
2BZ00E-d4 R1.5 6 75 4
2BZ00E-d6 R1.5 6 75 6
2BZ00F R1.5 6 100 3
2BZ00E-d4 R1.5 6 100 4
2BZ00F-d6 R1.5 6 100 6
2BZ040E R2 8 75 3
2BZ040E-d4 R2 8 75 4
2BZ040E-d6 R2 8 75 6
2BZ040F-d6 R2 8 100 6
2BZ040H R2 8 150 3
2BZ040H-d4 R2 8 150 4
2BZ040I R2 8 200 3
2BZ040I-d4 R2 8 200 4
2BZ050E R2.5 10 75 6
2BZ050F R2.5 10 100 6
2BZ050H R2.5 10 150 6
2BZ050I R2.5 10 200 6
2BZ050J R2.5 10 250 6
2BZ050K R2.5 10 300 6
2BZ060E R3 12 75 6
2BZ060F R3 12 100 6
2BZ060H R3 12 150 6
2BZ060I R3 12 200 6
2BZ060J R3 12 250 6
2BZ060K R3 12 300 6
2BZ070E R3.5 14 75 8
2BZ070F R3.5 14 100 8
2BZ070H R3.5 14 150 8
2BZ070I R3.5 14 200 8
2BZ070J R3.5 14 250 8
2BZ070K R3.5 14 300 8
2BZ080E R4 16 75 8
2BZ080F R4 16 100 8
2BZ080H R4 16 150 8
2BZ080I R4 16 200 8
2BZ080J R4 16 250 8
2BZ080K R4 16 300 8
2BZ100F R5 20 100 10
2BZ100H R5 20 150 10
2BZ100I R5 20 200 10
2BZ100J R5 20 250 10
2BZ100K R5 20 300 10
2BZ120F R6 24 100 12
2BZ120H R6 24 150 12
2BZ120I R6 24 200 12
2BZ120J R6 24 250 12
2BZ120K R6 24 300 12
2BZ140 R7 28 100 16
2BZ140H R7 28 150 16
2BZ140I R7 28 200 16
2BZ140J R7 28 250 16
2BZ140K R7 28 300 16
2BZ160I R8 32 200 16
2BZ160J R8 32 250 16
2BZ160K R8 32 300 16
2BZ200I R10 40 200 20
2BZ200J R10 40 250 20
2BZ200K R10 40 300 20
2BZ250 R12.5 50 100 25
2BZ250H R12.5 50 150 25
2BZ250I R12.5 50 200 25
2BZ250J R12.5 50 250 25
2BZ250K R12.5 50 300 25
切削刀具-二刃圆头铣刀
2刃圆头铣刀
切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状
NMG Ball Nose End Mills /奈米微粒钨钢 2 刃 深沟用 圆头数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
