WMD1

精密裁板圆锯片

Precision Panel Saw Blade

background
精密裁板圆锯片
  • 用途：此锯片设计适用於35mm以下中密度板丶硬质贴面刨花板和多层板切割。贴面材质需配合划槽锯片。
  • 材质：采用日本钢板以及钨钢
  • 特色：卓越的切割效果
  • 刀刃形式：

    S-CF

  • ※各式规格皆订制，最低订购量50PCS
unit:mm
型号
 外径 刃厚度 本体厚
 内孔
 齿数
定孔位
 齿型

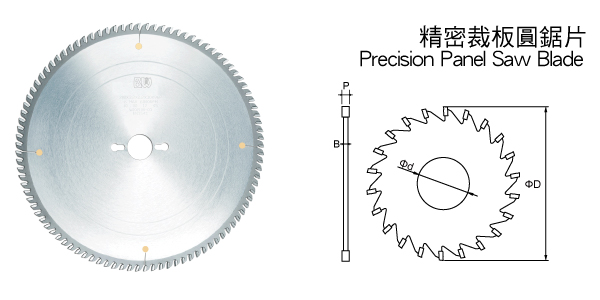

ΦD P B Φd Z PH TP
WMD1-25032030060 250 3.2 2.2 30 60 2/10/60+2/7/42 S-CF
WMD1-25032030080 250 3.2 2.2 30 80 2/10/60+2/7/42 S-CF
WMD1-28032030060 280 3.2 2.2 30 60 2/10/60+2/7/42 S-CF
WMD1-30032254060 300 3.2 2.2 25.4 60 2/10/60+2/7/42 S-CF
WMD1-30032030060 300 3.2 2.2 30 60 2/10/60+2/7/42 S-CF
WMD1-30032254072 300 3.2 2.2 25.4 72 2/10/60+2/7/42 S-CF
WMD1-30032030072 300 3.2 2.2 30 72 2/10/60+2/7/42 S-CF
WMD1-30032254080 300 3.2 2.2 25.4 80 2/10/60+2/7/42 S-CF
WMD1-30032030080 300 3.2 2.2 30 80 2/10/60+2/7/42 S-CF
WMD1-30032254096 300 3.2 2.2 25.4 96 2/10/60+2/7/42 S-CF
WMD1-30032030096 300 3.2 2.2 30 96 2/10/60+2/7/42 S-CF
WMD1-35035254054 350 3.5 2.5 25.4 54 2/10/60+2/7/42 S-CF
WMD1-35035030054 350 3.5 2.5 30 54 2/10/60+2/7/42 S-CF
WMD1-35035254072 350 3.5 2.5 25.4 72 2/10/60+2/7/42 S-CF
WMD1-35035030072 350 3.5 2.5 30 72 2/10/60+2/7/42 S-CF
WMD1-35035254084 350 3.5 2.5 25.4 84 2/10/60+2/7/42 S-CF
WMD1-35035030084 350 3.5 2.5 30 84 2/10/60+2/7/42 S-CF
WMD1-35035254096 350 3.5 2.5 25.4 96 2/10/60+2/7/42 S-CF
WMD1-35035030096 350 3.5 2.5 30 96 2/10/60+2/7/42 S-CF
WMD1-35035254108 350 3.5 2.5 25.4 108 2/10/60+2/7/42 S-CF
WMD1-35035030108 350 3.5 2.5 30 108 2/10/60+2/7/42 S-CF
WMD1-40035030084 400 3.5 2.5 30 84 2/10/60+2/7/42 S-CF
WMD1-40035030108 400 3.5 2.5 30 108 2/10/60+2/7/42 S-CF
WMD1-40035030120 400 3.5 2.5 30 120 2/10/60+2/7/42 S-CF
