铝合金圆锯片

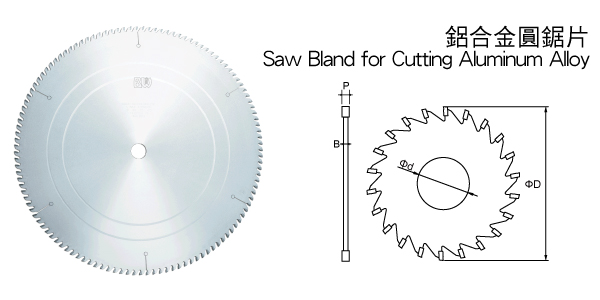

Saw Bland for Cutting Aluminum Alloy

background
铝合金圆锯片
  • 用途：此锯片设计适用於各类铝合金材料切割。
  • 材质：采用日本钢板以及钨钢
  • 特色：卓越的切割效果，无毛边，精细的表面

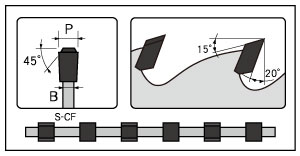

  • 刀刃形式：

    S-CF

  • ※各式规格皆订制，最低订购量50PCS
unit:mm
型号
 外径 刃厚度 本体厚
 内孔
 齿数
齿型
ΦD P B Φd Z TP
AA20030300048 200 3.0 2.4 30 48 S-CF
AA25030300050 250 3.0 2.4 30 50 S-CF
AA25030300060 250 3.0 2.4 30 60 S-CF
AA25030300070 250 3.0 2.4 30.0 70 S-CF
AA25030300080 250 3.0 2.4 30.0 80 S-CF
AA27530300070 275 3.0 2.4 30.0 70 S-CF
AA27530300080 275 3.0 2.4 30.0 80 S-CF
AA30030300070 300 3.0 2.4 30.0 70 S-CF
AA30030300080 300 3.0 2.4 30.0 80 S-CF
AA30030300096 300 3.0 2.4 30.0 96 S-CF
AA30030300100 300 3.0 2.4 30.0 100 S-CF
AA30530254060 305 3.0 2.5 25.4 60 S-CF
AA30530254080 305 3.0 2.5 25.4 80 S-CF
AA30530254100 305 3.0 2.5 25.4 100 S-CF
AA30530254120 305 3.0 2.5 25.4 120 S-CF
AA33030300080 330 3.0 2.4 30.0 80 S-CF
AA33030300096 330 3.0 2.4 30.0 96 S-CF
AA35030300060 350 3.0 2.4 30.0 60 S-CF
AA35030300070 350 3.0 2.4 30.0 70 S-CF
AA35030300080 350 3.0 2.4 30.0 80 S-CF
AA35030300096 350 3.0 2.4 30.0 96 S-CF
AA35030300100 350 3.0 2.4 30.0 100 S-CF
AA35032300120 350 3.0 2.4 30.0 108 S-CF
AA35530254050 355 3.0 2.4 25.4 50 S-CF
AA35530254060 355 3.0 2.4 25.4 60 S-CF
AA35530254080 355 3.0 2.4 25.4 80 S-CF
AA35530254100 355 3.0 2.5 25.4 100 S-CF
AA35530254120 355 3.0 2.5 25.4 120 S-CF
AA37036300060 370 3.6 3.0 30.0 60 S-CF
AA37036300080 370 3.6 3.0 30.0 80 S-CF
AA40036300070 400 3.6 3.0 30.0 70 S-CF
AA40036300080 400 3.6 3.0 30.0 80 S-CF
AA40036300096 400 3.6 3.0 30.0 96 S-CF
AA40532254060 405 3.2 2.6 25.4 60 S-CF
AA40532254080 405 3.2 2.6 25.4 80 S-CF
AA40532254100 405 3.2 2.6 25.4 100 S-CF
AA40532254120 405 3.2 2.6 25.4 120 S-CF
AA42036300096 420 3.6 3.0 30.0 96 S-CF
AA42036300120 420 3.6 3.0 30.0 120 S-CF
AA43036300096 430 3.6 3.0 30.0 96 S-CF
AA45040300080 450 4.0 3.4 30.0 80 S-CF
AA45040300096 450 4.0 3.4 30.0 96 S-CF
AA45040300120 450 4.0 3.4 30.0 120 S-CF
AA45534254050 455 3.4 2.8 25.4 50 S-CF
AA45534254060 455 3.4 2.8 25.4 60 S-CF
AA45534254080 455 3.4 2.8 25.4 80 S-CF
AA45534254100 455 3.4 2.8 25.4 100 S-CF
AA45534254120 455 3.4 2.8 25.4 120 S-CF
AA50040300080 500 4.0 3.4 30.0 80 S-CF
AA50040300100 500 4.0 3.4 30.0 100 S-CF
AA50040300120 500 4.0 3.4 30.0 120 S-CF
AA50044300120 500 4.4 3.8 30.0 120 S-CF
AA50536254050 505 3.6 3.0 25.4 50 S-CF
AA50536254060 505 3.6 3.0 25.4 60 S-CF
AA50536254080 505 3.6 3.0 25.4 80 S-CF
AA50536254100 505 3.6 3.0 25.4 100 S-CF
AA50536254120 505 3.6 3.0 25.4 120 S-CF
AA56038254050 560 3.8 3.2 25.4 50 S-CF
AA56038254060 560 3.8 3.2 25.4 60 S-CF
AA56038254080 560 3.8 3.2 25.4 80 S-CF
AA56038254100 560 3.8 3.2 25.4 100 S-CF
AA56038254120 560 3.8 3.2 25.4 120 S-CF
AA61040254050 610 4.0 3.2 25.4 50 S-CF
AA61040254060 610 4.0 3.2 25.4 60 S-CF
AA61040254080 610 4.0 3.4 25.4 80 S-CF
AA61040254100 610 4.0 3.4 25.4 100 S-CF
AA61040254120 610 4.0 3.4 25.4 120 S-CF
AA66040254060 660 4.0 3.4 25.4 60 S-CF
