cutting tool
CBNI
Cubic Boron Nitride Insert
立方氮化硼車刀片
background
- Material:CBN/PcBN Blade
- Characteristics：long life, high hardness, fine surface
- Application:Apply for many industries like mold, motor, aerospace, national defense, electronic, wood, precision working, etc.
- Custom made according to your request.

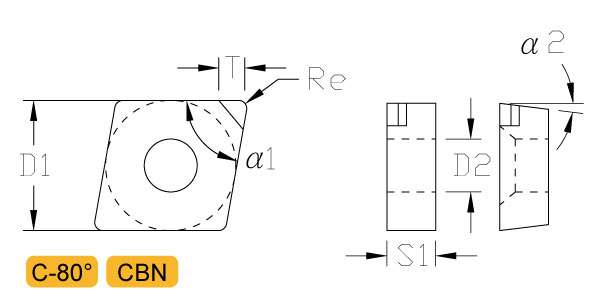

»80° Insert
 |
||||||||
| unit:mm | ||||||||
| Order Code | D1 | S1 | Re | D2 | Z | α1 | α2 | 刀尖樣式 |
| CNGA120404S-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 80° | 0° | S |
| CNGA120408S-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 80° | 0° | S |
| CNGA120412S-NAC1 | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 80° | 0° | S |
| CNGA120404T-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 80° | 0° | T |
| CNGA120408T-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 80° | 0° | T |
| CNGA120412T-NAC1 | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 80° | 0° | T |
| CCMW060202T-PAC1 | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 80° | 7° | T |
| CCMW060204T-PAC1 | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 80° | 7° | T |
| CCMW09T302T-PAC1 | 9.525 | 3.97 | 0.2 | 4.4 | 1 | 80° | 7° | T |
| CCMW09T304T-PAC1 | 9.525 | 3.97 | 0.4 | 4.4 | 1 | 80° | 7° | T |
| CPGB090302T-PAC1 | 9.525 | 3.18 | 0.2 | 4.5 | 1 | 80° | 11° | T |
| CPGB090304T-PAC1 | 9.525 | 3.18 | 0.4 | 4.5 | 1 | 80° | 11° | T |

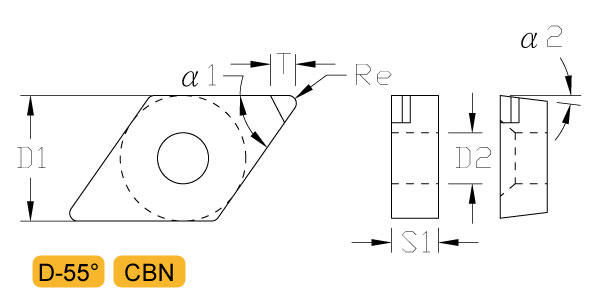

»55° Insert
 |
||||||||
| unit:mm | ||||||||
| Order Code | D1 | S1 | Re | D2 | Z | α1 | α2 | 刀尖樣式 |
| DNGA150404S-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 55° | 0° | S |
| DNGA150408S-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 55° | 0° | S |
| DNGA150412S-NAC1 | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 55° | 0° | S |
| DNGA150404T-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 55° | 0° | T |
| DNGA150408T-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 55° | 0° | T |
| DCMW070202T-PAC1 | 6.35 | 2.38 | 0.2 | 2.8 | 1 | 55° | 7° | T |
| DCMW070204T-PAC1 | 6.35 | 2.38 | 0.4 | 2.8 | 1 | 55° | 7° | T |
| DCMW11T302T-PAC1 | 9.525 | 3.97 | 0.2 | 4.4 | 1 | 55° | 7° | T |
| DCMW11T304T-PAC1 | 9.525 | 3.97 | 0.4 | 4.4 | 1 | 55° | 7° | T |
| DCMW11T308T-PAC1 | 9.525 | 3.97 | 0.8 | 4.4 | 1 | 55° | 7° | T |

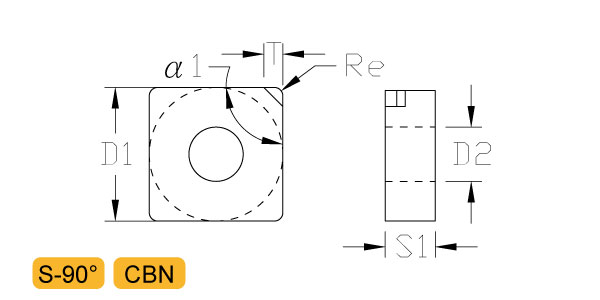

»90° Insert
 |
||||||||
| unit:mm | ||||||||
| Order Code | D1 | S1 | Re | D2 | Z | α1 | α2 | 刀尖樣式 |
| SNGA120404S-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 90° | 0° | S |
| SNGA120408S-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 90° | 0° | S |
| SNGA120404T-NAC1 | 12.7 | 4.76 | 0.4 | 5.16 | 1 | 90° | 0° | T |
| SNGA120408T-NAC1 | 12.7 | 4.76 | 0.8 | 5.16 | 1 | 90° | 0° | T |
| SNGA120412T-NAC1 | 12.7 | 4.76 | 1.2 | 5.16 | 1 | 90° | 0° | T |

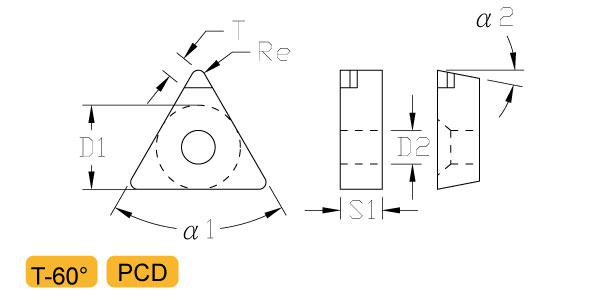

»60° Insert
 |
||||||||
| unit:mm | ||||||||
| Order Code | D1 | S1 | Re | D2 | Z | α1 | α2 | 刀尖樣式 |
| TNGA160404S-NAC1 | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 60° | 0° | S |
| TNGA160408S-NAC1 | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 60° | 0° | S |
| TNGA160412S-NAC1 | 9.525 | 4.76 | 1.2 | 3.81 | 1 | 60° | 0° | S |
| TNGA160404T-NAC1 | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 60° | 0° | T |
| TNGA160408T-NAC1 | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 60° | 0° | T |
| TNGA160412T-NAC1 | 9.525 | 4.76 | 1.2 | 3.81 | 1 | 60° | 0° | T |
| TPGB110302T-PAC1 | 6.35 | 3.18 | 0.2 | 3.5 | 1 | 60° | 11° | T |
| TPGB110304T-PAC1 | 6.35 | 3.18 | 0.4 | 3.5 | 1 | 60° | 11° | T |
| TPGB110308T-PAC1 | 6.35 | 3.18 | 0.8 | 3.5 | 1 | 60° | 11° | T |
| TPGB160302T-PAC1 | 9.525 | 3.18 | 0.2 | 4.5 | 1 | 60° | 11° | T |
| TPGB160302T-PAC1 | 9.525 | 3.18 | 0.4 | 4.5 | 1 | 60° | 11° | T |

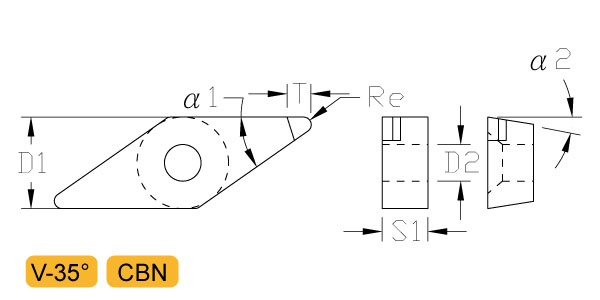

»35° Insert
 |
||||||||
| unit:mm | ||||||||
| Order Code | D1 | S1 | Re | D2 | Z | α1 | α2 | 刀尖樣式 |
| VNGA160404S-NAC1 | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 35° | 0° | S |
| VNGA160408S-NAC1 | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 35° | 0° | S |
| VNGA160404T-NAC1 | 9.525 | 4.76 | 0.4 | 3.81 | 1 | 35° | 0° | T |
| VNGA160408T-NAC1 | 9.525 | 4.76 | 0.8 | 3.81 | 1 | 35° | 0° | T |
| VBGW110304S-PAC1 | 6.35 | 3.18 | 0.4 | 2.8 | 1 | 35° | 5° | S |
| VBGW110308S-PAC1 | 6.35 | 3.18 | 0.8 | 2.8 | 1 | 35° | 5° | S |
| VBGW160404S-PAC1 | 9.525 | 4.76 | 0.4 | 4.4 | 1 | 35° | 5° | S |
| VBGW160408S-PAC1 | 9.525 | 4.76 | 0.8 | 4.4 | 1 | 35° | 5° | S |
