PDI

聚(多)晶金刚石车刀片

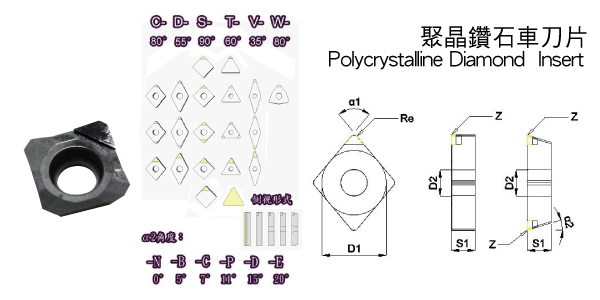

Polycrystalline Diamond Insert

background
聚(多)晶金刚石车刀片
  • 产品材质：聚晶金刚石刀刃/PCD
  • 产品特性：寿命长丶硬度高丶切割表面更加镜面光滑
  • 产品用途：适用面板镜面抛光加工
  • 旧刀替换PCD刃修磨加工
  • 订制刀具
    • 聚晶金刚石金刚石刀具

»80° 车刀片规格

氮化硼車刀片-80°
unit:mm
Order Code D1 S1 Re D2 Z α1 α2 α3
CNMM120402F-NAP1 12.7 4.76 0.2 5.16 1 80°  0°  10°
CNMM120404F-NAP1 12.7 4.76 0.4 5.16 1 80°  0°  10°
CNMM120408F-NAP1 12.7 4.76 0.8 5.16 1 80°  0°  10°
CNMM120412F-NAP1 12.7 4.76 1.2 5.16 1 80°  0°  10°
CCGW060201F-PAP1 6.35 2.38 0.1 2.8 1 80°  7° 0°
CCGW060202F-PAP1 6.35 2.38 0.2 2.8 1 80°  7° 0°
CCGW060204F-PAP1 6.35 2.38 0.4 2.8 1 80°  7° 0°
CCMT060201F-PAP1 6.35 2.38 0.1 2.8 1 80°  7° 10°
CCMT060202F-PAP1 6.35 2.38 0.2 2.8 1 80°  7° 10°
CCMT060204F-PAP1 6.35 2.38 0.4 2.8 1 80°  7° 10°
CCMT09T301F-PAP1 9.525 3.97 0.1 4.4 1 80°  7° 10°
CCMT09T302F-PAP1 9.525 3.97 0.2 4.4 1 80°  7° 10°
CCMT09T304F-PAP1 9.525 3.97 0.2 4.4 1 80°  7° 10°
CCMT09T308F-PAP1 9.525 3.97 0.2 4.4 1 80°  7° 10°
CPMH080201F-PAP1 7.94 2.38 0.1 3.5 1 80°  7° 10°
CPMH080202F-PAP1 7.94 2.38 0.2 3.5 1 80°  7° 10°
CPMH080204F-PAP1 7.94 2.38 0.4 3.5 1 80°  7° 10°
CPMH080208F-PAP1 7.94 2.38 0.8 3.5 1 80°  7° 10°
CPMH090301F-PAP1 9.525 3.18 0.1 4.5 1 80°  7° 10°
CPMH090302F-PAP1 9.525 3.18 0.2 4.5 1 80°  7° 10°
CPMH090304F-PAP1 9.525 3.18 0.4 4.5 1 80°  7° 10°
CPMH090308F-PAP1 9.525 3.18 0.8 4.5 1 80°  7° 10°

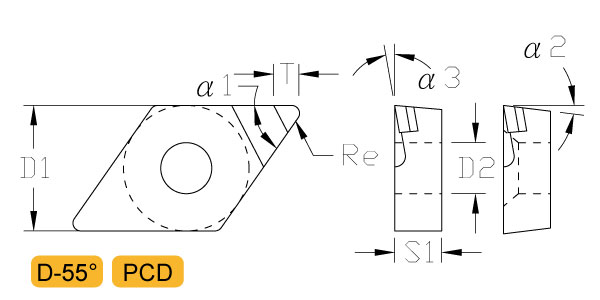

»55° 车刀片规格

氮化硼車刀片-80°
unit:mm
Order Code D1 S1 Re D2 Z α1 α2 α3
DNMM150402F-NAP1 12.7 4.76 0.2 5.16 1 55° 0° 10°
DNMM150404F-NAP1 12.7 4.76 0.4 5.16 1 55° 0° 10°
DNMM150408F-NAP1 12.7 4.76 0.8 5.16 1 55° 0° 10°
DNMM150412F-NAP1 12.7 4.76 1.2 5.16 1 55° 0° 10°
DCMT070201F-PAP1 6.35 2.38 0.1 2.8 1 55°  7° 10°
DCMT070202F-PAP1 6.35 2.38 0.2 2.8 1 55°  7° 10°
DCMT070204F-PAP1 6.35 2.38 0.4 2.8 1 55°  7° 10°
DCMT11T301F-PAP1 9.525 3.97 0.1 4.4 1 55°  7° 10°
DCMT11T302F-PAP1 9.525 3.97 0.2 4.4 1 55°  7° 10°
DCMT11T304F-PAP1 9.525 3.97 0.4 4.4 1 55°  7° 10°
DCMT11T308F-PAP1 9.525 3.97 0.8 4.4 1 55°  7° 10°

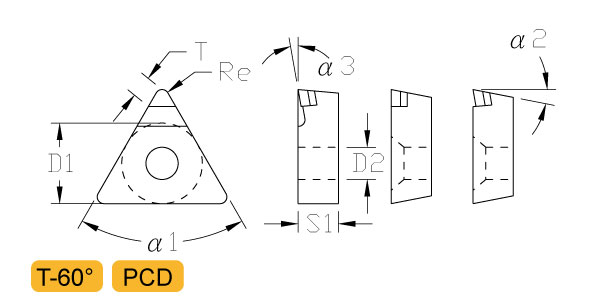

»60° 车刀片规格

氮化硼車刀片-80°
unit:mm
Order Code D1 S1 Re D2 Z α1 α2 α3
TNMM160402F-NAP1 9.525 4.76 0.2 3.81 1 60°  0° 10°
TNMM160404F-NAP1 9.525 4.76 0.4 3.81 1 60°  0° 10°
TNMM160408F-NAP1 9.525 4.76 0.8 3.81 1 60°  0° 10°
TNMM160412F-NAP1 9.525 4.76 1.2 3.81 1 60°  0° 10°
TCGW110302F-PAP1 6.35 3.18 0.2 2.8 1 60°  7° 0°
TCGW110304F-PAP1 6.35 3.18 0.4 2.8 1 60°  7° 0°
TCGW110308F-PAP1 6.35 3.18 0.8 2.8 1 60°  7° 0°
TCMT110302F-PAP1 6.35 3.18 0.2 2.8 1 60°  7° 10°
TCMT110304F-PAP1 6.35 3.18 0.4 2.8 1 60°  7° 10°
TCMT110308F-PAP1 6.35 3.18 0.8 2.8 1 60°  7° 10°
TPGB110302F-PAP1 6.35 3.18 0.2 3.3 1 60°  11° 0°
TPGB110304F-PAP1 6.35 3.18 0.4 3.3 1 60°  11° 0°
TPGB110308F-PAP1 6.35 3.18 0.8 3.3 1 60°  11° 0°
TPGB160302F-PAP1 9.525 3.18 0.2 4.5 1 60°  11° 0°
TPGB160304F-PAP1 9.525 3.18 0.4 4.5 1 60°  11° 0°
TPGB160308F-PAP1 9.525 3.18 0.8 4.5 1 60°  11° 0°
TPMH110302F-PAP1 6.35 3.18 0.2 3.3 1 60°  11° 10°
TPMH110304F-PAP1 6.35 3.18 0.4 3.3 1 60°  11° 10°
TPMH110308F-PAP1 6.35 3.18 0.8 3.3 1 60°  11° 10°
TPMH160301F-PAP1 9.525 3.18 0.1 4.5 1 60°  11° 10°
TPMH160302F-PAP1 9.525 3.18 0.2 4.5 1 60°  11° 10°
TPMH160304F-PAP1 9.525 3.18 0.4 4.5 1 60°  11° 10°
TPMH160308F-PAP1 9.525 3.18 0.8 4.5 1 60°  11° 10°

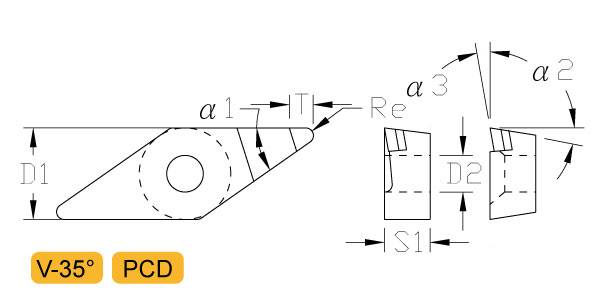

»35° 车刀片规格

氮化硼車刀片-80°
unit:mm
Order Code D1 S1 Re D2 Z α1 α2 α3
VNMM160402F-NAP1 9.525 4.76 0.2 5.3 1 35°  0° 10°
VNMM160404F-NAP1 9.525 4.76 0.4 5.3 1 35°  0° 10°
VNMM160408F-NAP1 9.525 4.76 0.8 5.3 1 35°  0° 10°
VNMM160412F-NAP1 9.525 4.76 1.2 5.3 1 35°  0° 10°
 VBMT110301F-PAP1 6.35 3.18 0.1 2.8 1 35°  5° 10°
 VBMT110302F-PAP1 6.35 3.18 0.2 2.8 1 35°  5° 10°
 VBMT110304F-PAP1 6.35 3.18 0.4 2.8 1 35°  5° 10°
 VBMT110308F-PAP1 6.35 3.18 0.8 2.8 1 35°  5° 10°
VBMT160401F-PAP1 9.525 4.76 0.1 4.4 1 35°  5° 10°
VBMT160402F-PAP1 9.525 4.76 0.2 4.4 1 35°  5° 10°
VBMT160404F-PAP1 9.525 4.76 0.4 4.4 1 35°  5° 10°
VBMT160408F-PAP1 9.525 4.76 0.8 4.4 1 35°  5° 10°
