cutting tool
GBMA

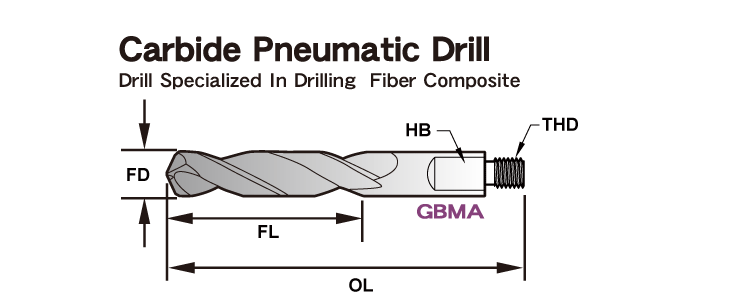

Pneumatic machine Drill for Fiber Composite
航太纖維複合材用氣動機械鑽頭
background
- Application：Specialized In Drilling Fiber Composite
- Material：Solid Carbide (Body) + Steel (Threaded Shank)
- Flute：2 Flute
- coating：No coating or CVDD
- To request additional product information or other technical support, please contact us.
| unit:in | |||||||||
| Order Code | Body DIA. FD |
Pilon Angle θ1 |
Helix Angle α2 |
Flute Z |
Standard Flute FL |
Total Length OL |
Wrench Flats HB |
Threaded Length in |
Threaded Shank THD |
| GBMA1285-2-8 | 0.1285 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1360-2-8 | 0.1360 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1405-2-8 | 0.1405 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1460-2-8 | 0.1460 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1440-2-8 | 0.1440 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1470-2-8 | 0.1470 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1495-2-8 | 0.1495 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1520-2-8 | 0.1520 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1540-2-8 | 0.1540 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1562-2-8 | 0.1562 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1570-2-8 | 0.1570 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1590-2-8 | 0.1590 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1610-2-8 | 0.1610 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1660-2-8 | 0.1660 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1696-2-8 | 0.1696 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1719-2-8 | 0.1719 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1730-2-8 | 0.1730 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1770-2-8 | 0.1770 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1800-2-8 | 0.1800 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1820-2-8 | 0.1820 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1850-2-8 | 0.1850 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1875-2-8 | 0.1875 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1890-2-8 | 0.1890 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1910-2-8 | 0.1910 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1935-2-8 | 0.1935 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1960-2-8 | 0.1960 | 175° | 30° | 2 | 1 | 2 | 0.25 | 0.25 | 1/4-28 |
| GBMA1990-2-12 | 0.1990 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2010-2-12 | 0.2010 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2030-2-12 | 0.2030 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2040-2-12 | 0.2040 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2055-2-12 | 0.2055 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2090-2-12 | 0.2090 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2130-2-12 | 0.2130 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2188-2-12 | 0.2188 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2210-2-12 | 0.2210 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2280-2-12 | 0.2280 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2340-2-12 | 0.2340 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2344-2-12 | 0.2344 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2380-2-12 | 0.2380 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2420-2-12 | 0.2420 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2460-2-12 | 0.2460 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2500-2-12 | 0.2500 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2570-2-12 | 0.2570 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2610-2-12 | 0.2610 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2658-2-12 | 0.2658 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2600-2-12 | 0.2600 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2720-2-12 | 0.2720 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2770-2-12 | 0.2770 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2810-2-12 | 0.2810 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2812-2-12 | 0.2812 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2900-2-12 | 0.2900 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2950-2-12 | 0.2950 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA2969-2-12 | 0.2969 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3020-2-12 | 0.3020 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3125-2-12 | 0.3125 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3160-2-12 | 0.3160 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3230-2-12 | 0.3230 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3281-2-12 | 0.3281 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3320-2-12 | 0.3320 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3390-2-12 | 0.3390 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3438-2-12 | 0.3438 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3480-2-12 | 0.3480 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3580-2-12 | 0.3580 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3594-2-12 | 0.3594 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3680-2-12 | 0.3680 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 1/4-28 |
| GBMA3750-4-12 | 0.3750 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA3770-4-12 | 0.3770 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA3860-4-12 | 0.3860 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA3906-4-12 | 0.3906 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA3970-4-12 | 0.3970 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4040-4-12 | 0.4040 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4062-4-12 | 0.4062 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4130-4-12 | 0.4130 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4219-4-12 | 0.4219 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4375-4-12 | 0.4375 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4531-4-12 | 0.4531 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4688-4-12 | 0.4688 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA4844-4-12 | 0.4844 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA5000-4-12 | 0.5000 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA5312-4-12 | 0.5312 | 175° | 30° | 2 | 2 | 3 | 0.25 | 0.25 | 3/8-24 |
| GBMA5625-4-16 | 0.5625 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA5938-4-16 | 0.5938 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA6250-4-16 | 0.6250 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA6562-4-16 | 0.6562 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA6875-4-16 | 0.6875 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA7188-4-16 | 0.7188 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA7500-4-16 | 0.7500 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA7812-4-16 | 0.7812 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA8125-4-16 | 0.8125 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA8438-4-16 | 0.8438 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA8750-4-16 | 0.8750 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA9062-4-16 | 0.9062 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA9375-4-16 | 0.9375 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA9688-4-16 | 0.9688 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA10000-4-16 | 1.0000 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA10313-4-16 | 1.0313 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA10625-4-16 | 1.0625 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA10938-4-16 | 1.0938 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA11250-4-16 | 1.1250 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA11562-4-16 | 1.1562 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA11875-4-16 | 1.1875 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA12188-4-16 | 1.2188 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA12500-4-16 | 1.2500 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA12812-4-16 | 1.2812 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA13126-4-16 | 1.3126 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA13438-4-16 | 1.3438 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA13750-4-16 | 1.3750 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA14062-4-16 | 1.4062 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA14375-4-16 | 1.4375 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA14688-4-16 | 1.4688 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
| GBMA15000-4-16 | 1.5000 | 175° | 30° | 2 | 3 | 4 | 0.25 | 0.25 | 3/8-24 |
