cutting tool
CT

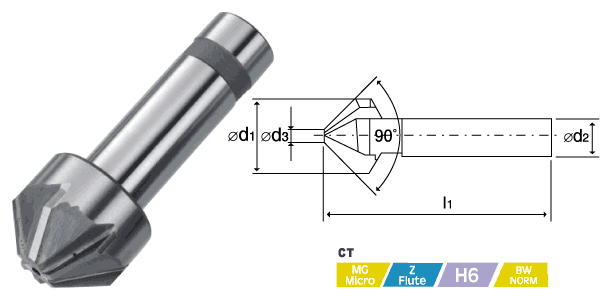

Chamfering with Shank
焊刃式帶柄倒角銑刀
background
| unit:mm | |||||
| Order Code. | d1 | b | Z | Angle | |
| CT-20180460 | 20 | 18 | 4 | 60° | |
| CT-35250660 | 35 | 25 | 6 | 60° | |
| CT-52320660 | 52 | 32 | 6 | 60° | |
| CT-20150490 | 20 | 15 | 4 | 90° | |
| CT-36220690 | 36 | 22 | 6 | 90° | |
| CT-52220690 | 52 | 22 | 6 | 90° | |
| CT-52320690 | 52 | 32 | 6 | 90° | |
| CT-65450690 | 65 | 45 | 6 | 90° | |
| CT-75500690 | 75 | 50 | 6 | 90° | |
Brazed Carbide Cutter
