cutting tool
unit:in | |||||||||

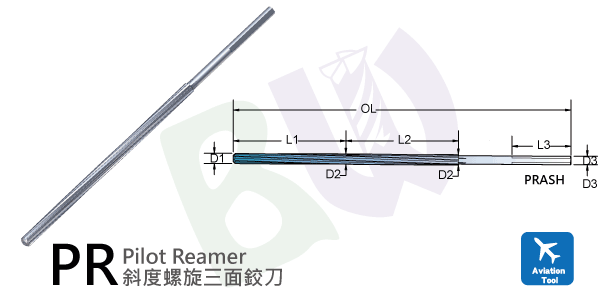

Aviation Tapered Helix Reamer - shank with 3-flat holder | |||||||||
Order Code | d1 | d2 | d3 | L | l2 | l1 | l3 | THD | |
PRASH-0182-01875D | 0.182 | 0.1875 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0198-02031D | 0.198 | 0.2031 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0213-02188D | 0.213 | 0.2188 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0229-02344D | 0.229 | 0.2344 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0260-02656D | 0.260 | 0.2656 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0276-02813D | 0.276 | 0.2813 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0291-02969D | 0.291 | 0.2969 | 0.312 | 6.000 | 2.000 | 2 | 0.250 | 3 Surface | |
PRASH-0307-03125D | 0.307 | 0.3125 | 0.312 | 7.000 | 2.000 | 3 | 0.250 | 3 Surface | |
PRASH-0323-03281D | 0.323 | 0.3281 | 0.312 | 7.000 | 2.000 | 3 | 0.250 | 3 Surface | |
PRASH-0338-03438D | 0.338 | 0.3438 | 0.312 | 7.000 | 2.000 | 3 | 0.250 | 3 Surface | |
PRASH-0354-03594D | 0.354 | 0.3594 | 0.312 | 7.000 | 2.000 | 3 | 0.250 | 3 Surface | |
PRASH-0370-03750D | 0.370 | 0.3750 | 0.312 | 7.000 | 2.000 | 3 | 0.250 | 3 Surface | |
PRASH-0385-03906D | 0.385 | 0.3906 | 0.312 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0401-04063D | 0.401 | 0.4063 | 0.312 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0416-04219D | 0.416 | 0.4219 | 0.375 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0432-04375D | 0.432 | 0.4375 | 0.375 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0448-04531D | 0.448 | 0.4531 | 0.375 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0463-04688D | 0.463 | 0.4688 | 0.375 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0479-04844D | 0.479 | 0.4844 | 0.375 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0495-05000D | 0.495 | 0.5000 | 0.453 | 7.000 | 2.000 | 3 | 0.375 | 3 Surface | |
PRASH-0510-05156D | 0.510 | 0.5156 | 0.453 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0526-05313D | 0.526 | 0.5313 | 0.453 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0541-05469D | 0.541 | 0.5469 | 0.453 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0557-05625D | 0.557 | 0.5625 | 0.453 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0573-05781D | 0.573 | 0.5781 | 0.453 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0588-05938D | 0.588 | 0.5938 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0604-06094D | 0.604 | 0.6094 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0620-06250D | 0.620 | 0.6250 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0635-06406D | 0.635 | 0.6406 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0651-06563D | 0.651 | 0.6563 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0666-06719D | 0.666 | 0.6719 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0682-06875D | 0.682 | 0.6875 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0698-07031D | 0.698 | 0.7031 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0713-07188D | 0.713 | 0.7188 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0729-07344D | 0.729 | 0.7344 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0745-07500D | 0.745 | 0.7500 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0760-07656D | 0.760 | 0.7656 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0776-07813D | 0.776 | 0.7813 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0791-07969D | 0.791 | 0.7969 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0907-08125D | 0.907 | 0.8125 | 0.500 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0823-08281D | 0.823 | 0.8281 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0838-08438D | 0.838 | 0.8438 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0854-08594D | 0.854 | 0.8594 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0870-08750D | 0.870 | 0.8750 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0885-08906D | 0.885 | 0.8906 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0901-09063D | 0.901 | 0.9063 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0916-09219D | 0.916 | 0.9219 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0932-09375D | 0.932 | 0.9375 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0948-09531D | 0.948 | 0.9531 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0963-09688D | 0.963 | 0.9688 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0979-09844D | 0.979 | 0.9844 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface | |
PRASH-0995-10000D | 0.995 | 1.0000 | 0.750 | 7.500 | 2.500 | 3 | 0.375 | 3 Surface |
