cutting tool
PR

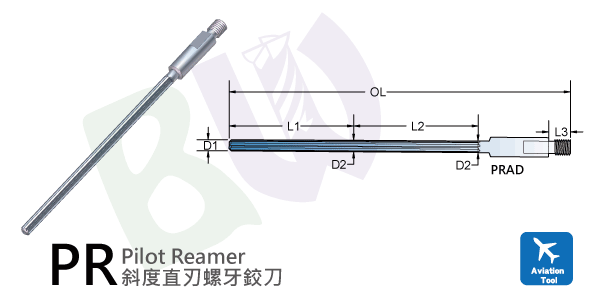

Tapered Straight Flute Thread Reamer
鎢鋼斜度直刃螺牙鉸刀
background
- Norm：accord with with TAPPER REAMER-NAS897
- Application：Machine Reamer for aerospace industry.
- Material：Carbide
- coating：DLC or uncoated
| unit:in | |||||||||
| Aviation Tapered Straight Flute Thread Reamer | |||||||||
| Order Code | d1 | d2 | d3 | L | l2 | l1 | l3 | THD | |
| PRAD-0182-01875D | 0.182" | 0.1875 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0198-02031D | 0.198" | 0.2031 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0213-02188D | 0.213" | 0.2188 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0229-02344D | 0.229" | 0.2344 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0260-02656D | 0.260" | 0.2656 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0276-02813D | 0.276" | 0.2813 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0291-02969D | 0.291" | 0.2969 | 0.312" | 6.000" | 2.000" | 2" | 0.250" | 1/4 -- 28 | |
| PRAD-0307-03125D | 0.307" | 0.3125 | 0.312" | 7.000" | 2.000" | 3" | 0.250" | 3/8 -- 24 | |
| PRAD-0323-03281D | 0.323" | 0.3281 | 0.312" | 7.000" | 2.000" | 3" | 0.250" | 3/8 -- 24 | |
| PRAD-0338-03438D | 0.338" | 0.3438 | 0.312" | 7.000" | 2.000" | 3" | 0.250" | 3/8 -- 24 | |
| PRAD-0354-03594D | 0.354" | 0.3594 | 0.312" | 7.000" | 2.000" | 3" | 0.250" | 3/8 -- 24 | |
| PRAD-0370-03750D | 0.370" | 0.3750 | 0.312" | 7.000" | 2.000" | 3" | 0.250" | 3/8 -- 24 | |
| PRAD-0385-03906D | 0.385" | 0.3906 | 0.312" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0401-04063D | 0.401" | 0.4063 | 0.312" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0416-04219D | 0.416" | 0.4219 | 0.375" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0432-04375D | 0.432" | 0.4375 | 0.375" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0448-04531D | 0.448" | 0.4531 | 0.375" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0463-04688D | 0.463" | 0.4688 | 0.375" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0479-04844D | 0.479" | 0.4844 | 0.375" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0495-05000D | 0.495" | 0.5000 | 0.453" | 7.000" | 2.000" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0510-05156D | 0.510" | 0.5156 | 0.453" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0526-05313D | 0.526" | 0.5313 | 0.453" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0541-05469D | 0.541" | 0.5469 | 0.453" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0557-05625D | 0.557" | 0.5625 | 0.453" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0573-05781D | 0.573" | 0.5781 | 0.453" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0588-05938D | 0.588" | 0.5938 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0604-06094D | 0.604" | 0.6094 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0620-06250D | 0.620" | 0.6250 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0635-06406D | 0.635" | 0.6406 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0651-06563D | 0.651" | 0.6563 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0666-06719D | 0.666" | 0.6719 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0682-06875D | 0.682" | 0.6875 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0698-07031D | 0.698" | 0.7031 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0713-07188D | 0.713" | 0.7188 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0729-07344D | 0.729" | 0.7344 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0745-07500D | 0.745" | 0.7500 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0760-07656D | 0.760" | 0.7656 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0776-07813D | 0.776" | 0.7813 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0791-07969D | 0.791" | 0.7969 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0907-08125D | 0.907" | 0.8125 | 0.500" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0823-08281D | 0.823" | 0.8281 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0838-08438D | 0.838" | 0.8438 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0854-08594D | 0.854" | 0.8594 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0870-08750D | 0.870" | 0.8750 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0885-08906D | 0.885" | 0.8906 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0901-09063D | 0.901" | 0.9063 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0916-09219D | 0.916" | 0.9219 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0932-09375D | 0.932" | 0.9375 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0948-09531D | 0.948" | 0.9531 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0963-09688D | 0.963" | 0.9688 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0979-09844D | 0.979" | 0.9844 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
| PRAD-0995-10000D | 0.995" | 1.0000 | 0.750" | 7.500" | 2.500" | 3" | 0.375" | 3/8 -- 24 | |
