2NHB

37° 2 Flute Ball HSS End Mills(No Key Slot)

37度2刃球頭高速鋼銑刀(無鍵槽)

background
tool,Aerospace 37° 2 Flute Ball HSS End Mills(No Key Slot)
  • Norm：under NAS 986 standard
  • Application：working on aerospace industry
  • Material：in - HSS
unit:in

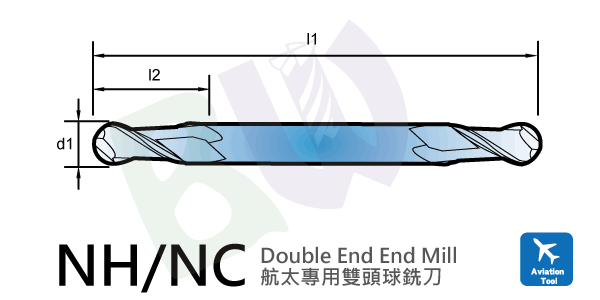

37° 2 Flute Ball HSS End Mills
Order Code Φd1 Φd2 l2 l1
2NHB1250019-37 0.1250 0.1874 0.1900 2.3200
2NHB1250038-37 0.1250 0.1874 0.3800 2.6900
2NHB1250050-37 0.1250 0.1874 0.5000 2.9400
2NHB1250075-37 0.1250 0.1874 0.7500 3.4400
2NHB1406022-37 0.1406 0.3749 0.2200 2.3100
2NHB1406038-37 0.1406 0.3749 0.3800 2.6300
2NHB1406050-37 0.1406 0.3749 0.5000 2.8800
2NHB1406075-37 0.1406 0.3749 0.7500 3.3800
2NHB1562023-37 0.1562 0.3749 0.2300 2.3600
2NHB1562050-37 0.1562 0.3749 0.5000 2.8800
2NHB1562075-37 0.1562 0.3749 0.7500 3.3800
2NHB1718025-37 0.1718 0.3749 0.2500 2.3800
2NHB1718050-37 0.1718 0.3749 0.5000 2.8800
2NHB1718075-37 0.1718 0.3749 0.7500 3.3800
2NHB1875038-37 0.1875 0.3749 0.3800 2.6300
2NHB1875050-37 0.1875 0.3749 0.5000 2.8800
2NHB1875075-37 0.1875 0.3749 0.7500 3.3800
2NHB1875100-37 0.1875 0.3749 1.0000 3.8800
2NHB2187036-37 0.2187 0.3749 0.3600 2.6100
2NHB2187050-37 0.2187 0.3749 0.5000 2.8800
2NHB2187075-37 0.2187 0.3749 0.7500 3.3800
2NHB2187100-37 0.2187 0.3749 1.0000 3.8800
2NHB3125050-37 0.3125 0.3749 0.5000 2.7500
2NHB3125075-37 0.3125 0.3749 0.7500 3.2500
2NHB3125100-37 0.3125 0.3749 1.0000 3.7500
2NHB3125125-37 0.3125 0.3749 1.2500 4.2500
2NHB3125150-37 0.3125 0.3749 1.5000 4.7500
2NHB3125175-37 0.3125 0.3749 1.7500 5.2500
2NHB3125200-37 0.3125 0.3749 2.0000 5.7500
2NHB3125225-37 0.3125 0.3749 2.2500 6.2500
2NHB3750050-37 0.3750 0.3749 0.5000 2.7500
2NHB3750075-37 0.3750 0.3749 0.7500 3.2500
2NHB3750100-37 0.3750 0.3749 1.0000 3.7500
2NHB3750125-37 0.3750 0.3749 1.2500 4.2500
2NHB3750150-37 0.3750 0.3749 1.5000 4.7500
2NHB3750175-37 0.3750 0.3749 1.7500 5.2500
2NHB3750200-37 0.3750 0.3749 2.0000 5.7500
2NHB3750225-37 0.3750 0.3749 2.2500 6.2500
2NHB3750250-37 0.3750 0.3749 2.5000 6.7500
2NHB3750275-37 0.3750 0.3749 2.7500 7.2500
2NHB3750300-37 0.3750 0.3749 3.0000 7.7500
2NHB4375050-37 0.4375 0.4998 0.5000 3.0000
2NHB4375075-37 0.4375 0.4998 0.7500 3.5000
2NHB4375100-37 0.4375 0.4998 1.0000 4.0000
2NHB4375125-37 0.4375 0.4998 1.2500 4.5000
2NHB4375150-37 0.4375 0.4998 1.5000 5.0000
2NHB4375175-37 0.4375 0.4998 1.7500 5.5000
2NHB4375200-37 0.4375 0.4998 2.0000 6.0000
2NHB4375225-37 0.4375 0.4998 2.2500 6.5000
2NHB4375250-37 0.4375 0.4998 2.5000 7.0000
2NHB4375275-37 0.4375 0.4998 2.7500 7.5000
2NHB4375300-37 0.4375 0.4998 3.0000 8.0000
2NHB4375325-37 0.4375 0.4998 3.2500 8.5000
2NHB4375350-37 0.4375 0.4998 3.5000 9.0000
2NHB5000050-37 0.5000 0.4998 0.5000 3.0000
2NHB5000075-37 0.5000 0.4998 0.7500 3.5000
2NHB5000100-37 0.5000 0.4998 1.0000 4.0000
2NHB5000125-37 0.5000 0.4998 1.2500 4.5000
2NHB5000150-37 0.5000 0.4998 1.5000 5.2500
2NHB5000175-37 0.5000 0.4998 1.7500 5.7500
2NHB5000200-37 0.5000 0.4998 2.0000 6.2500
2NHB5000225-37 0.5000 0.4998 2.2500 6.7500
2NHB5000250-37 0.5000 0.4998 2.5000 7.2500
2NHB5000275-37 0.5000 0.4998 2.7500 7.7500
2NHB5000300-37 0.5000 0.4998 3.0000 8.2500
2NHB5000325-37 0.5000 0.4998 3.2500 8.7500
2NHB5000350-37 0.5000 0.4998 3.5000 9.2500
2NHB5000375-37 0.5000 0.4998 3.7500 9.7500
2NHB6250075-37 0.6250 0.6248 0.7500 3.6300
2NHB6250100-37 0.6250 0.6248 1.0000 4.1300
2NHB6250125-37 0.6250 0.6248 1.2500 4.6300
2NHB6250150-37 0.6250 0.6248 1.5000 5.1300
2NHB6250175-37 0.6250 0.6248 1.7500 5.6300
2NHB6250200-37 0.6250 0.6248 2.0000 6.1300
2NHB6250225-37 0.6250 0.6248 2.2500 6.6300
2NHB6250250-37 0.6250 0.6248 2.5000 7.1300
2NHB6250275-37 0.6250 0.6248 2.7500 7.6300
2NHB6250300-37 0.6250 0.6248 3.0000 8.1300
2NHB6250325-37 0.6250 0.6248 3.2500 8.6300
2NHB6250350-37 0.6250 0.6248 3.5000 9.1300
2NHB6250375-37 0.6250 0.6248 3.7500 9.6300
2NHB6250400-37 0.6250 0.6248 4.0000 10.1300
2NHB6250425-37 0.6250 0.6248 4.2500 7.6300
2NHB6250450-37 0.6250 0.6248 4.5000 11.1300
2NHB6250475-37 0.6250 0.6248 4.7500 11.6300
2NHB7500075-37 0.7500 0.7498 0.7500 3.7500
2NHB7500100-37 0.7500 0.7498 1.0000 4.2500
2NHB7500125-37 0.7500 0.7498 1.2500 4.7500
2NHB7500150-37 0.7500 0.7498 1.5000 5.2500
2NHB7500175-37 0.7500 0.7498 1.7500 5.7500
2NHB7500200-37 0.7500 0.7498 2.0000 6.2500
2NHB7500225-37 0.7500 0.7498 2.2500 6.7500
2NHB7500250-37 0.7500 0.7498 2.5000 7.2500
2NHB7500275-37 0.7500 0.7498 2.7500 7.7500
2NHB7500300-37 0.7500 0.7498 3.0000 8.2500
2NHB7500325-37 0.7500 0.7498 3.2500 8.7500
2NHB7500350-37 0.7500 0.7498 3.5000 9.2500
2NHB7500375-37 0.7500 0.7498 3.7500 9.7500
2NHB7500400-37 0.7500 0.7498 4.0000 10.2500
2NHB7500425-37 0.7500 0.7498 4.2500 10.7500
2NHB7500450-37 0.7500 0.7498 4.5000 11.2500
2NHB7500475-37 0.7500 0.7498 4.7500 11.7500
2NHB7500500-37 0.7500 0.7498 5.0000 12.2500
2NHB7500525-37 0.7500 0.7498 5.2500 12.7500
2NHB7500550-37 0.7500 0.7498 5.5000 13.2500
2NHB8750100-37 0.8750 0.8748 1.0000 4.2500
2NHB8750125-37 0.8750 0.8748 1.2500 4.7500
2NHB8750150-37 0.8750 0.8748 1.5000 5.2500
2NHB8750175-37 0.8750 0.8748 1.7500 5.7500
2NHB8750200-37 0.8750 0.8748 2.0000 6.2500
2NHB8750225-37 0.8750 0.8748 2.2500 6.7500
2NHB8750250-37 0.8750 0.8748 2.5000 7.2500
2NHB8750275-37 0.8750 0.8748 2.7500 7.7500
2NHB8750300-37 0.8750 0.8748 3.0000 8.2500
2NHB8750325-37 0.8750 0.8748 3.2500 8.7500
2NHB8750350-37 0.8750 0.8748 3.5000 9.2500
2NHB8750375-37 0.8750 0.8748 3.7500 9.7500
2NHB8750400-37 0.8750 0.8748 4.0000 10.2500
2NHB8750425-37 0.8750 0.8748 4.2500 10.7500
2NHB8750450-37 0.8750 0.8748 4.5000 11.2500
2NHB8750475-37 0.8750 0.8748 4.7500 11.7500
2NHB8750500-37 0.8750 0.8748 5.0000 12.2500
2NHB8750525-37 0.8750 0.8748 5.2500 12.7500
2NHB8750550-37 0.8750 0.8748 5.5000 13.2500
2NHB8750575-37 0.8750 0.8748 5.7500 13.7500
2NHB8750600-37 0.8750 0.8748 6.0000 14.2500
2NHB8750625-37 0.8750 0.8748 6.2500 14.7500
2NHB8750650-37 0.8750 0.8748 6.5000 15.2500
2NHB8750675-37 0.8750 0.8748 6.7500 15.7500
2NHB8750700-37 0.8750 0.8748 7.0000 16.2500
2NHB10000100-37 1.0000 0.9998 1.0000 4.5000
2NHB10000125-37 1.0000 0.9998 1.2500 5.0000
2NHB10000150-37 1.0000 0.9998 1.5000 5.5000
2NHB10000175-37 1.0000 0.9998 1.7500 6.0000
2NHB10000200-37 1.0000 0.9998 2.0000 6.5000
2NHB10000225-37 1.0000 0.9998 2.2500 7.0000
2NHB10000250-37 1.0000 0.9998 2.5000 7.5000
2NHB10000275-37 1.0000 0.9998 2.7500 8.0000
2NHB10000300-37 1.0000 0.9998 3.0000 8.5000
2NHB10000325-37 1.0000 0.9998 3.2500 9.0000
2NHB10000350-37 1.0000 0.9998 3.5000 9.5000
2NHB10000375-37 1.0000 0.9998 3.7500 10.0000
2NHB10000400-37 1.0000 0.9998 4.0000 10.5000
2NHB10000425-37 1.0000 0.9998 4.2500 11.0000
2NHB10000450-37 1.0000 0.9998 4.5000 11.5000
2NHB10000475-37 1.0000 0.9998 4.7500 12.0000
2NHB10000500-37 1.0000 0.9998 5.0000 12.5000
2NHB10000525-37 1.0000 0.9998 5.2500 13.0000
2NHB10000550-37 1.0000 0.9998 5.5000 13.5000
2NHB10000575-37 1.0000 0.9998 5.7500 14.0000
2NHB10000600-37 1.0000 0.9998 6.0000 14.5000
2NHB10000625-37 1.0000 0.9998 6.2500 15.0000
2NHB10000650-37 1.0000 0.9998 6.5000 15.5000
2NHB10000675-37 1.0000 0.9998 6.7500 16.0000
2NHB10000700-37 1.0000 0.9998 7.0000 16.5000
2NHB10000725-37 1.0000 0.9998 7.2500 17.0000
2NHB10000750-37 1.0000 0.9998 7.5000 17.5000
2NHB10000775-37 1.0000 0.9998 7.7500 18.0000
2NHB10000800-37 1.0000 0.9998 8.0000 18.5000
