2NHB

35° HSS Double End Ball End Mill(With Key Slot)

30度2刃球頭高速鋼銑刀(有鍵槽)

background
tool,Aerospace 35° 2 Flute Ball HSS End Mills(With Key Slot)
  • Norm：under NAS 986 standard
  • Application：working on aerospace industry
  • Material：in - HSS
unit:in

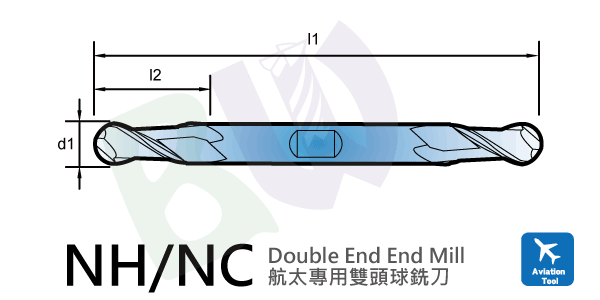

35° HSS Double End Ball End Mill
Order Code Φd1 Φd2 l2 l1
2NHB1250019-35HB 0.1250 0.1874 0.1900 0.1900
2NHB1250038-35HB 0.1250 0.1874 0.3800 0.3800
2NHB1250050-35HB 0.1250 0.1874 0.5000 0.5000
2NHB1250075-35HB 0.1250 0.1874 0.7500 0.7500
2NHB1406022-35HB 0.1406 0.3749 0.2200 0.2200
2NHB1406038-35HB 0.1406 0.3749 0.3800 0.3800
2NHB1406050-35HB 0.1406 0.3749 0.5000 0.5000
2NHB1406075-35HB 0.1406 0.3749 0.7500 0.7500
2NHB1562023-35HB 0.1562 0.3749 0.2300 0.2300
2NHB1562050-35HB 0.1562 0.3749 0.5000 0.5000
2NHB1562075-35HB 0.1562 0.3749 0.7500 0.7500
2NHB1718025-35HB 0.1718 0.3749 0.2500 0.2500
2NHB1718050-35HB 0.1718 0.3749 0.5000 0.5000
2NHB1718075-35HB 0.1718 0.3749 0.7500 0.7500
2NHB1875038-35HB 0.1875 0.3749 0.3800 0.3800
2NHB1875050-35HB 0.1875 0.3749 0.5000 0.5000
2NHB1875075-35HB 0.1875 0.3749 0.7500 0.7500
2NHB1875100-35HB 0.1875 0.3749 1.0000 1.0000
2NHB2187036-35HB 0.2187 0.3749 0.3600 0.3600
2NHB2187050-35HB 0.2187 0.3749 0.5000 0.5000
2NHB2187075-35HB 0.2187 0.3749 0.7500 0.7500
2NHB2187100-35HB 0.2187 0.3749 1.0000 1.0000
2NHB3125050-35HB 0.3125 0.3749 0.5000 0.5000
2NHB3125075-35HB 0.3125 0.3749 0.7500 0.7500
2NHB3125100-35HB 0.3125 0.3749 1.0000 1.0000
2NHB3125125-35HB 0.3125 0.3749 1.2500 1.2500
2NHB3125150-35HB 0.3125 0.3749 1.5000 1.5000
2NHB3125175-35HB 0.3125 0.3749 1.7500 1.7500
2NHB3125200-35HB 0.3125 0.3749 2.0000 2.0000
2NHB3125225-35HB 0.3125 0.3749 2.2500 2.2500
2NHB3750050-35HB 0.3750 0.3749 0.5000 0.5000
2NHB3750075-35HB 0.3750 0.3749 0.7500 0.7500
2NHB3750100-35HB 0.3750 0.3749 1.0000 1.0000
2NHB3750125-35HB 0.3750 0.3749 1.2500 1.2500
2NHB3750150-35HB 0.3750 0.3749 1.5000 1.5000
2NHB3750175-35HB 0.3750 0.3749 1.7500 1.7500
2NHB3750200-35HB 0.3750 0.3749 2.0000 2.0000
2NHB3750225-35HB 0.3750 0.3749 2.2500 2.2500
2NHB3750250-35HB 0.3750 0.3749 2.5000 2.5000
2NHB3750275-35HB 0.3750 0.3749 2.7500 2.7500
2NHB3750300-35HB 0.3750 0.3749 3.0000 3.0000
2NHB4375050-35HB 0.4375 0.4998 0.5000 0.5000
2NHB4375075-35HB 0.4375 0.4998 0.7500 0.7500
2NHB4375100-35HB 0.4375 0.4998 1.0000 1.0000
2NHB4375125-35HB 0.4375 0.4998 1.2500 1.2500
2NHB4375150-35HB 0.4375 0.4998 1.5000 1.5000
2NHB4375175-35HB 0.4375 0.4998 1.7500 1.7500
2NHB4375200-35HB 0.4375 0.4998 2.0000 2.0000
2NHB4375225-35HB 0.4375 0.4998 2.2500 2.2500
2NHB4375250-35HB 0.4375 0.4998 2.5000 2.5000
2NHB4375275-35HB 0.4375 0.4998 2.7500 2.7500
2NHB4375300-35HB 0.4375 0.4998 3.0000 3.0000
2NHB4375325-35HB 0.4375 0.4998 3.2500 3.2500
2NHB4375350-35HB 0.4375 0.4998 3.5000 3.5000
2NHB5000050-35HB 0.5000 0.4998 0.5000 0.5000
2NHB5000075-35HB 0.5000 0.4998 0.7500 0.7500
2NHB5000100-35HB 0.5000 0.4998 1.0000 1.0000
2NHB5000125-35HB 0.5000 0.4998 1.2500 1.2500
2NHB5000150-35HB 0.5000 0.4998 1.5000 1.5000
2NHB5000175-35HB 0.5000 0.4998 1.7500 1.7500
2NHB5000200-35HB 0.5000 0.4998 2.0000 2.0000
2NHB5000225-35HB 0.5000 0.4998 2.2500 2.2500
2NHB5000250-35HB 0.5000 0.4998 2.5000 2.5000
2NHB5000275-35HB 0.5000 0.4998 2.7500 2.7500
2NHB5000300-35HB 0.5000 0.4998 3.0000 3.0000
2NHB5000325-35HB 0.5000 0.4998 3.2500 3.2500
2NHB5000350-35HB 0.5000 0.4998 3.5000 3.5000
2NHB5000375-35HB 0.5000 0.4998 3.7500 3.7500
2NHB6250075-35HB 0.6250 0.6248 0.7500 0.7500
2NHB6250100-35HB 0.6250 0.6248 1.0000 1.0000
2NHB6250125-35HB 0.6250 0.6248 1.2500 1.2500
2NHB6250150-35HB 0.6250 0.6248 1.5000 1.5000
2NHB6250175-35HB 0.6250 0.6248 1.7500 1.7500
2NHB6250200-35HB 0.6250 0.6248 2.0000 2.0000
2NHB6250225-35HB 0.6250 0.6248 2.2500 2.2500
2NHB6250250-35HB 0.6250 0.6248 2.5000 2.5000
2NHB6250275-35HB 0.6250 0.6248 2.7500 2.7500
2NHB6250300-35HB 0.6250 0.6248 3.0000 3.0000
2NHB6250325-35HB 0.6250 0.6248 3.2500 3.2500
2NHB6250350-35HB 0.6250 0.6248 3.5000 3.5000
2NHB6250375-35HB 0.6250 0.6248 3.7500 3.7500
2NHB6250400-35HB 0.6250 0.6248 4.0000 4.0000
2NHB6250425-35HB 0.6250 0.6248 4.2500 4.2500
2NHB6250450-35HB 0.6250 0.6248 4.5000 4.5000
2NHB6250475-35HB 0.6250 0.6248 4.7500 4.7500
2NHB7500075-35HB 0.7500 0.7498 0.7500 0.7500
2NHB7500100-35HB 0.7500 0.7498 1.0000 1.0000
2NHB7500125-35HB 0.7500 0.7498 1.2500 1.2500
2NHB7500150-35HB 0.7500 0.7498 1.5000 1.5000
2NHB7500175-35HB 0.7500 0.7498 1.7500 1.7500
2NHB7500200-35HB 0.7500 0.7498 2.0000 2.0000
2NHB7500225-35HB 0.7500 0.7498 2.2500 2.2500
2NHB7500250-35HB 0.7500 0.7498 2.5000 2.5000
2NHB7500275-35HB 0.7500 0.7498 2.7500 2.7500
2NHB7500300-35HB 0.7500 0.7498 3.0000 3.0000
2NHB7500325-35HB 0.7500 0.7498 3.2500 3.2500
2NHB7500350-35HB 0.7500 0.7498 3.5000 3.5000
2NHB7500375-35HB 0.7500 0.7498 3.7500 3.7500
2NHB7500400-35HB 0.7500 0.7498 4.0000 4.0000
2NHB7500425-35HB 0.7500 0.7498 4.2500 4.2500
2NHB7500450-35HB 0.7500 0.7498 4.5000 4.5000
2NHB7500475-35HB 0.7500 0.7498 4.7500 4.7500
2NHB7500500-35HB 0.7500 0.7498 5.0000 5.0000
2NHB7500525-35HB 0.7500 0.7498 5.2500 5.2500
2NHB7500550-35HB 0.7500 0.7498 5.5000 5.5000
2NHB8750100-35HB 0.8750 0.8748 1.0000 1.0000
2NHB8750125-35HB 0.8750 0.8748 1.2500 1.2500
2NHB8750150-35HB 0.8750 0.8748 1.5000 1.5000
2NHB8750175-35HB 0.8750 0.8748 1.7500 1.7500
2NHB8750200-35HB 0.8750 0.8748 2.0000 2.0000
2NHB8750225-35HB 0.8750 0.8748 2.2500 2.2500
2NHB8750250-35HB 0.8750 0.8748 2.5000 2.5000
2NHB8750275-35HB 0.8750 0.8748 2.7500 2.7500
2NHB8750300-35HB 0.8750 0.8748 3.0000 3.0000
2NHB8750325-35HB 0.8750 0.8748 3.2500 3.2500
2NHB8750350-35HB 0.8750 0.8748 3.5000 3.5000
2NHB8750375-35HB 0.8750 0.8748 3.7500 3.7500
2NHB8750400-35HB 0.8750 0.8748 4.0000 4.0000
2NHB8750425-35HB 0.8750 0.8748 4.2500 4.2500
2NHB8750450-35HB 0.8750 0.8748 4.5000 4.5000
2NHB8750475-35HB 0.8750 0.8748 4.7500 4.7500
2NHB8750500-35HB 0.8750 0.8748 5.0000 5.0000
2NHB8750525-35HB 0.8750 0.8748 5.2500 5.2500
2NHB8750550-35HB 0.8750 0.8748 5.5000 5.5000
2NHB8750575-35HB 0.8750 0.8748 5.7500 5.7500
2NHB8750600-35HB 0.8750 0.8748 6.0000 6.0000
2NHB8750625-35HB 0.8750 0.8748 6.2500 6.2500
2NHB8750650-35HB 0.8750 0.8748 6.5000 6.5000
2NHB8750675-35HB 0.8750 0.8748 6.7500 6.7500
2NHB8750700-35HB 0.8750 0.8748 7.0000 7.0000
2NHB10000100-35HB 1.0000 0.9998 1.0000 1.0000
2NHB10000125-35HB 1.0000 0.9998 1.2500 1.2500
2NHB10000150-35HB 1.0000 0.9998 1.5000 1.5000
2NHB10000175-35HB 1.0000 0.9998 1.7500 1.7500
2NHB10000200-35HB 1.0000 0.9998 2.0000 2.0000
2NHB10000225-35HB 1.0000 0.9998 2.2500 2.2500
2NHB10000250-35HB 1.0000 0.9998 2.5000 2.5000
2NHB10000275-35HB 1.0000 0.9998 2.7500 2.7500
2NHB10000300-35HB 1.0000 0.9998 3.0000 3.0000
2NHB10000325-35HB 1.0000 0.9998 3.2500 3.2500
2NHB10000350-35HB 1.0000 0.9998 3.5000 3.5000
2NHB10000375-35HB 1.0000 0.9998 3.7500 3.7500
2NHB10000400-35HB 1.0000 0.9998 4.0000 4.0000
2NHB10000425-35HB 1.0000 0.9998 4.2500 4.2500
2NHB10000450-35HB 1.0000 0.9998 4.5000 4.5000
2NHB10000475-35HB 1.0000 0.9998 4.7500 4.7500
2NHB10000500-35HB 1.0000 0.9998 5.0000 5.0000
2NHB10000525-35HB 1.0000 0.9998 5.2500 5.2500
2NHB10000550-35HB 1.0000 0.9998 5.5000 5.5000
2NHB10000575-35HB 1.0000 0.9998 5.7500 5.7500
2NHB10000600-35HB 1.0000 0.9998 6.0000 6.0000
2NHB10000625-35HB 1.0000 0.9998 6.2500 6.2500
2NHB10000650-35HB 1.0000 0.9998 6.5000 6.5000
2NHB10000675-35HB 1.0000 0.9998 6.7500 6.7500
2NHB10000700-35HB 1.0000 0.9998 7.0000 7.0000
2NHB10000725-35HB 1.0000 0.9998 7.2500 7.2500
2NHB10000750-35HB 1.0000 0.9998 7.5000 7.5000
2NHB10000775-35HB 1.0000 0.9998 7.7500 7.7500
2NHB10000800-35HB 1.0000 0.9998 8.0000 8.0000
