cutting tool
3AZ
壓克力專用3刃平銑刀

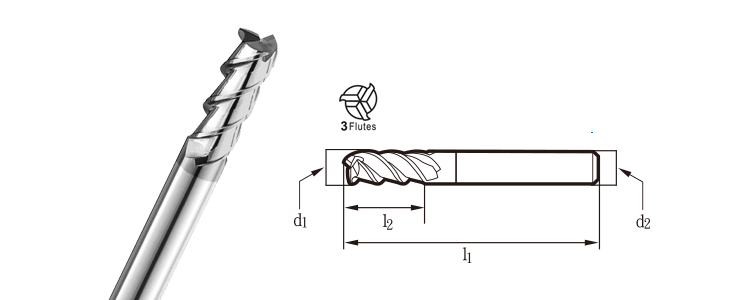

3 Flute End Mills for Acrylic
background
| unit:mm | ||||||
| Order Code. | Φd1(h10) | I2 | I1 | Φd2(h6) | ||
| 3AZ030 | 3 | 7 | 57 | 6 | ||
| 3AZ040 | 4 | 8 | 57 | 6 | ||
| 3AZ050 | 5 | 10 | 57 | 6 | ||
| 3AZ060 | 6 | 10 | 57 | 6 | ||
| 3AZ080 | 8 | 16 | 63 | 8 | ||
| 3AZ100 | 10 | 19 | 72 | 10 | ||
| 3AZ120 | 12 | 22 | 83 | 12 | ||
| 3AZ160 | 16 | 26 | 92 | 16 | ||
| 3AZ200 | 20 | 32 | 104 | 20 | ||
