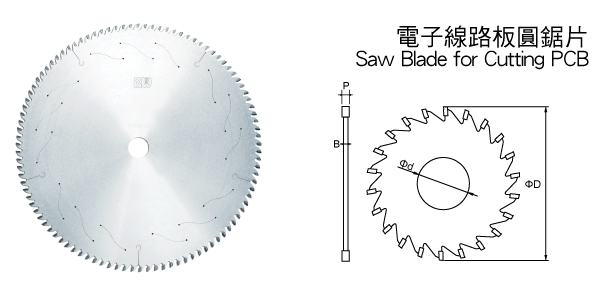

Saw Blade for Cutting PCB

電子線路板圓鋸片

background
Saw Blade for Cutting PCB
  • Application：Developed for cutting single or multiple panels of PCB.
  • Material：Blade in carbide
  • Characteristic：superior cutting effect
  • Tooth Pattern：

    T-F2RL

  • ※Custom-tailor would be available against customer 's requirements.
unit:mm
Order code Diameter Kerf Body Bore Tooth of Teeth Tooth Pattern
ΦD P B Φd Z TP
PCB30514254100 305 1.4 1.0 25.4 100 T-F2RL
PCB30514254100 305 1.4 2.0 25.4 100 T-F2RL
PCB305203175100 305 2.0 1.6 31.75 100 T-F2RL
PCB355303175120 355 3.0 2.4 31.75 120 T-F2RL
PCB40530254120 405 3.0 2.4 25.4 120 T-F2RL
PCB45530030160 455 3.0 2.4 30 160 T-F2RL
