BM2

Multiple Saw Blade for Strand Woven Bamboo

重竹材用多鋸片

background
Thin Multiple Saw Blade for Strand Woven Bamboo
  • Application：Suitable for cutting bamboo material.
  • Material：Blade in carbide
  • Characteristic：superior cutting effect

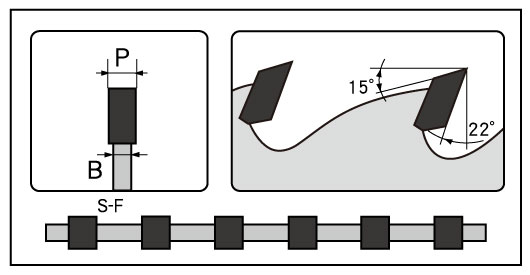

  • Tooth Pattern：

    S-RLT-F2RL

  • ※Custom-tailor would be available against customer 's requirements.
unit:mm
Order code Diameter Kerf Body Bore Tooth of Teeth Position Holes Tooth Pattern
ΦD P B Φd Z PH TP
BM2-14520400024 145 2.0 1.3 40 24 Double keyway
11.5X11.25		 S-RL
BM2-18040600024 180 4.0 3 60 24 Double keyway
12X12		 S-RL
BM2-21022400030 210 2.2 1.6 40 30 Double keyway
11.5X11.25		 S-RL
BM2-23018600030 230 1.8 1.3 60 30+3 Double keyway
12X12		 S-F
BM2-23022600030 230 2.2 1.6 60 30 Double keyway
12X12		 S-F
BM2-25022500030 250 2.2 1.6 50 30 Double keyway
11X6.5		 S-F
BM2-25022600030 250 2.2 1.6 60 30 Double keyway
12X12		 S-F
BM2-25024400030 250 2.4 1.8 40 30 Double keyway
11.5X11.25		 S-RL
BM2-25040600030 250 4.0 3.0 60 30 Double keyway
12X12		 S-RL
BM2-25522600030 255 2.2 1.6 60 30+4 Double keyway
12X12		 S-F
BM2-25528600024 255 2.8 1.8 60 24+6 Double keyway
12X12		 S-F
