Thin Multiple Saw Blade for Bamboo

竹材用多鋸片

background

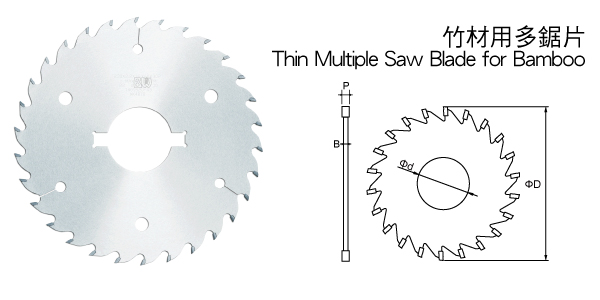

Thin Multiple Saw Blade for Bamboo
  • Application：Suitable for cutting bamboo material.
  • Material：Blade in carbide
  • Characteristic：high cutting efficience,superior cutting effect
  • Tooth Pattern：

    S-RLT-F2RL

  • ※Custom-tailor would be available against customer 's requirements.
unit:mm
Order code Diameter Kerf Body Bore Tooth of Teeth Tooth Pattern
ΦD P B Φd Z TP
BM1-16016400036 160 1.6 1.2 40 36 S-RL
BM1-18012400040 180 1.2 0.9 40 40 T-F2RL
BM1-20318400040 203 1.8 1.3 40 40 T-F2RL
BM1-20516600030 205 1.6 1.2/1.6 60 30 T-F2RL
BM1-23013500030 230 1.3 0.9/1.4 50 30 S-RL
BM1-25022400040 250 2.2 1.6 40 40 S-RL
BM1-25024700030 250 2.4 1.6 70 30 S-RL
BM1-25040600030 250 4.0 3.0 60 30 S-RL
BM1-25513500030 255 1.3 0.9/1.4 50 30 S-RL
BM1-25516254030 255 1.6 1.2/1.6 25.4 30 T-F2RL
BM1-25518254060 255 1.8 1.4 25.4 60 T-F2RL
BM1-25532254100 255 3.2 2.2 25.4 100 T-F2RL
BM1-28022254060 280 2.2 1.6 25.4 60 T-F2RL
BM1-30522254070 305 2.2 1.6 25.4 70 T-F2RL
