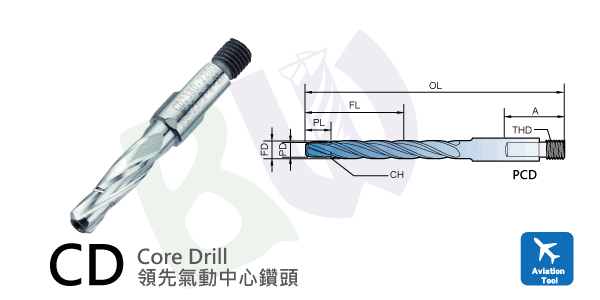

Carbide Pneumatic Pilot Core Drill
氣動領先中心鑽頭
background
- Norm：under NAS965 standard
- Application：Aviation Special Core Drill Cutter.
- Material：Carbide
- coating：DLC or uncoated
| unit:in | ||||||||||||
| CD Pneumatic Pilot Core Drill | ||||||||||||
| Order Code |
Flute |
Body DIA. |
Pilot DIA. |
Pilot Length |
Flute Length |
Wrench Length |
Helix Angle angle |
Body Gash angle |
Pilot Bevel angle |
Total Length |
Type Of Shank |
DIA Of Shank SD |
| Z | FD | PD | PL | FL | A | α | CH | PBA | OL | HB | SD | |
| CD1285-1120-50-2-8D | 4 | 0.1285 | 0.112 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1360-1190-50-2-8D | 4 | 0.1360 | 0.119 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1405-1240-50-2-8D | 4 | 0.1405 | 0.124 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1460-1240-50-2-8D | 4 | 0.1460 | 0.124 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1440-1280-50-2-8D | 4 | 0.1440 | 0.128 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1470-1280-50-2-8D | 4 | 0.1470 | 0.128 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1495-1350-50-2-8D | 4 | 0.1495 | 0.135 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1520-1350-50-2-8D | 4 | 0.1520 | 0.135 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1540-1400-50-2-8D | 4 | 0.1540 | 0.140 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1562-1400-50-2-8D | 4 | 0.1562 | 0.140 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1570-1430-50-2-8D | 4 | 0.1570 | 0.143 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1590-1460-50-2-8D | 4 | 0.1590 | 0.146 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1610-1460-50-2-8D | 4 | 0.1610 | 0.146 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1660-1510-50-2-8D | 4 | 0.1660 | 0.151 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1696-1530-50-2-8D | 4 | 0.1696 | 0.153 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1719-1550-50-2-8D | 4 | 0.1719 | 0.155 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1730-1560-50-2-8D | 4 | 0.1730 | 0.156 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1770-1600-50-2-8D | 4 | 0.1770 | 0.160 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1800-1650-50-2-8D | 4 | 0.1800 | 0.165 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1820-1650-50-2-8D | 4 | 0.1820 | 0.165 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1850-1710-50-2-8D | 4 | 0.1850 | 0.171 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1875-1710-50-2-8D | 4 | 0.1875 | 0.171 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1890-1760-50-2-8D | 4 | 0.1890 | 0.176 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1910-1760-50-2-8D | 4 | 0.1910 | 0.176 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1935-1760-50-2-8D | 4 | 0.1935 | 0.176 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1960-1790-50-2-8D | 4 | 0.1960 | 0.179 | 0.5 | 1.5 | 0.25 | 18° | 118° | 45° | 2 | 1/4-28 | 0.25 |
| CD1990-1870-50-2-12D | 4 | 0.1990 | 0.187 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2010-1870-50-2-12D | 4 | 0.2010 | 0.187 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2030-1870-50-2-12D | 4 | 0.2030 | 0.187 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2040-1900-50-2-12D | 4 | 0.2040 | 0.190 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2055-1900-50-2-12D | 4 | 0.2055 | 0.190 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2090-1900-50-2-12D | 4 | 0.2090 | 0.190 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2130-1980-50-2-12D | 4 | 0.2130 | 0.198 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2188-2020-50-2-12D | 4 | 0.2188 | 0.202 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2210-2050-50-2-12D | 4 | 0.2210 | 0.205 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2280-2120-50-2-12D | 4 | 0.2280 | 0.212 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2340-2180-50-2-12D | 4 | 0.2340 | 0.218 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2344-2180-50-2-12D | 4 | 0.2344 | 0.218 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2380-2200-50-2-12D | 4 | 0.2380 | 0.220 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2420-2270-50-2-12D | 4 | 0.2420 | 0.227 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2460-2340-50-2-12D | 4 | 0.2460 | 0.234 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2500-2340-50-2-12D | 4 | 0.2500 | 0.234 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2570-2410-50-2-12D | 4 | 0.2570 | 0.241 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2610-2450-50-2-12D | 4 | 0.2610 | 0.245 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2658-2490-50-2-12D | 4 | 0.2658 | 0.249 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2600-2490-50-2-12D | 4 | 0.2600 | 0.249 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2720-2560-50-2-12D | 4 | 0.2720 | 0.256 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2770-2650-50-2-12D | 4 | 0.2770 | 0.265 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2810-2650-50-2-12D | 4 | 0.2810 | 0.265 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2812-2650-50-2-12D | 4 | 0.2812 | 0.265 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2900-2780-50-2-12D | 4 | 0.2900 | 0.278 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2950-2800-50-2-12D | 4 | 0.2950 | 0.280 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD2969-2800-50-2-12D | 4 | 0.2969 | 0.280 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3020-2890-50-2-12D | 4 | 0.3020 | 0.289 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3125-2960-50-2-12D | 4 | 0.3125 | 0.296 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3160-3010-50-2-12D | 4 | 0.3160 | 0.301 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3230-3120-50-2-12D | 4 | 0.3230 | 0.312 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3281-3120-50-2-12D | 4 | 0.3281 | 0.312 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3320-3120-50-2-12D | 4 | 0.3320 | 0.312 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3390-3270-50-2-12D | 4 | 0.3390 | 0.327 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3438-3270-50-2-12D | 4 | 0.3438 | 0.327 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3480-3310-50-2-12D | 4 | 0.3480 | 0.331 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3580-3430-50-2-12D | 4 | 0.3580 | 0.343 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3594-3430-50-2-12D | 4 | 0.3594 | 0.343 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3680-3570-50-2-12D | 4 | 0.3680 | 0.357 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 1/4-28 | 0.25 |
| CD3750-3590-50-4-12D | 4 | 0.3750 | 0.359 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD3770-3590-50-4-12D | 4 | 0.3770 | 0.359 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD3860-3590-50-4-12D | 4 | 0.3860 | 0.359 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD3906-3760-50-4-12D | 4 | 0.3906 | 0.376 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD3970-3850-50-4-12D | 4 | 0.3970 | 0.385 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4040-3900-50-4-12D | 4 | 0.4040 | 0.390 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4062-3900-50-4-12D | 4 | 0.4062 | 0.390 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4130-3900-50-4-12D | 4 | 0.4130 | 0.390 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4219-4050-50-4-12D | 4 | 0.4219 | 0.405 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4375-4210-50-4-12D | 4 | 0.4375 | 0.421 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4531-4370-50-4-12D | 4 | 0.4531 | 0.437 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4688-4820-50-4-12D | 4 | 0.4688 | 0.452 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD4844-4680-50-4-12D | 4 | 0.4844 | 0.468 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD5000-4830-50-4-12D | 4 | 0.5000 | 0.483 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD5312-5140-50-4-12D | 4 | 0.5312 | 0.514 | 0.5 | 2.5 | 0.25 | 18° | 118° | 45° | 3 | 3/8-24 | 0.25 |
| CD5625-5460-50-4-16D | 4 | 0.5625 | 0.546 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD5938-5610-50-4-16D | 4 | 0.5938 | 0.561 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD6250-5920-50-4-16D | 4 | 0.6250 | 0.592 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD6562-6240-50-4-16D | 4 | 0.6562 | 0.624 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD6875-6550-50-4-16D | 4 | 0.6875 | 0.655 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD7188-6860-50-4-16D | 4 | 0.7188 | 0.686 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD7500-7180-50-4-16D | 4 | 0.7500 | 0.718 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD7812-7490-50-4-16D | 4 | 0.7812 | 0.749 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD8125-7490-50-4-16D | 4 | 0.8125 | 0.749 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD8438-8110-50-4-16D | 4 | 0.8438 | 0.811 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD8750-8430-50-4-16D | 4 | 0.8750 | 0.843 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD9062-8740-50-4-16D | 4 | 0.9062 | 0.874 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD9375-9050-50-4-16D | 4 | 0.9375 | 0.905 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD9688-9360-50-4-16D | 4 | 0.9688 | 0.936 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD10000-9680-50-4-16D | 4 | 1.0000 | 0.968 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD10313-10000-50-4-16D | 4 | 1.0313 | 1.000 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD10625-10300-50-4-16D | 4 | 1.0625 | 1.030 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD10938-10620-50-4-16D | 4 | 1.0938 | 1.062 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD11250-10920-50-4-16D | 4 | 1.1250 | 1.092 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD11562-11240-50-4-16D | 4 | 1.1562 | 1.124 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD11875-11550-50-4-16D | 4 | 1.1875 | 1.155 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD12188-11870-50-4-16D | 4 | 1.2188 | 1.187 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD12500-12170-50-4-16D | 4 | 1.2500 | 1.217 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD12812-12490-50-4-16D | 4 | 1.2812 | 1.249 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD13126-12810-50-4-16D | 4 | 1.3126 | 1.281 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD13438-13120-50-4-16D | 4 | 1.3438 | 1.312 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD13750-13420-50-4-16D | 4 | 1.3750 | 1.342 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD14062-13740-50-4-16D | 4 | 1.4062 | 1.374 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD14375-14060-50-4-16D | 4 | 1.4375 | 1.406 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD14688-14370-50-4-16D | 4 | 1.4688 | 1.437 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
| CD15000-14670-50-4-16D | 4 | 1.5000 | 1.467 | 0.5 | 3.5 | 0.25 | 18° | 118° | 45° | 4 | 3/8-24 | 0.25 |
