• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒鎢鋼
  • 適合於高速及高硬度持久切削
  • 6Z
  • Solid Carbide End Mills
  • 鎢鋼立銑刀
  • Material-Solid Carbide - Nano Micro Grain Flute Helix Angle55° Coating-AlTiN+PLC Hardness-HRC65 Shank acc.-DIN 6535HA DIN 6527 L

6 Flute End Mills

cutting tools-6 Flute End Mills
unit:mm

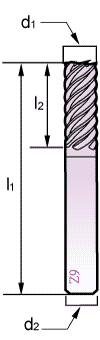

Order Code Φd1 (h10) I2 I1 Φd2 (h6)
6Z060 6.0 13.0 57 6.0
6Z080 8.0 19.0 63 8.0
6Z100 10.0 22.0 72 10.0
6Z120 12.0 26.0 83 12.0
6Z160 16.0 32.0 92 16.0
6Z200 20.0 38.0 104 20.0
特殊規格
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
6Z040 4 11 57 6
6Z040E 4 11 75 6
6Z040F 4 11 100 6
6Z040H 4 11 150 6
6Z040I 4 11 200 6
6Z050 5 13 57 6
6Z050E 5 13 75 6
6Z050F 5 13 100 6
6Z050H 5 13 150 6
6Z050I 5 13 200 6
6Z060E 6 13 75 6
6Z060F 6 13 100 6
6Z060H 6 13 150 6
6Z060I 6 13 200 6
6Z060J 6 13 250 6
6Z060K 6 13 300 6
6Z080F 8 19 100 8
6Z080H 8 19 150 8
6Z080I 8 19 200 8
6Z080J 8 19 250 8
6Z080K 8 19 300 8
6Z100F 10 22 100 10
6Z100H 10 22 150 10
6Z100I 10 22 200 10
6Z100J 10 22 250 10
6Z100K 10 22 300 10
6Z120F 12 26 100 12
6Z120H 12 26 150 12
6Z120I 12 26 200 12
6Z120J 12 26 250 12
6Z120K 12 26 300 12
6Z140 14 30 100 16
6Z140H 14 30 150 16
6Z140I 14 30 200 16
6Z140J 14 30 250 16
6Z140K 14 30 300 16
6Z160H 16 32 150 16
6Z160I 16 32 200 16
6Z160J 16 32 250 16
6Z160K 16 32 300 16
6Z180 18 36 92 18
6Z180H 18 36 150 18
6Z180I 18 36 200 18
6Z180J 18 36 250 18
6Z180K 18 36 300 18
6Z200H 20 38 150 20
6Z200I 20 38 200 20
6Z200J 20 38 250 20
6Z200K 20 38 300 20
6Z250 25 42 104 25
6Z250H 25 42 150 25
6Z250I 25 42 200 25
6Z250J 25 42 250 25
6Z250K 25 42 300 25
cutting tools-6 Flute End Mills
6 Flute End Mills
Shape of the workpiece Shape of the workpiece Shape of the workpiece Shape of the workpiece
NMG End Mills / 奈米微粒钨钢6刃数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
