• Solid Carbide - Nano Micro Grain
  • Great for speedy and rigid cutting
  • 奈米微粒钨钢
  • 适合於高速及高硬度持久切削
  • 4Z
  • Solid Carbide End Mills
  • 钨钢立铣刀
  • 材质-奈米微粒钨钢 刀刃螺旋角度50度 镀层-AlTiN+PLC 工件硬度-HRC65 刀柄硬度标准 刀具,数控铣刀,长度标准

四刃高螺旋平铣刀

切削刀具-四刃高螺旋平铣刀
unit:mm

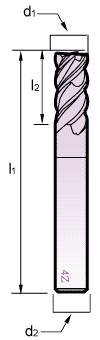

Order Code Φd1(h10) I2 I1 Φd2(h6)
4Z040 4.0 11.0 57 6.0
4Z050 5.0 13.0 57 6.0
4Z060 6.0 13.0 57 6.0
4Z060F 6.0 13.0 100 6.0
4Z080 8.0 19.0 63 8.0
4Z080F 8.0 19.0 100 8.0
4Z100 10.0 22.0 72 10.0
4Z100F 10.0 22.0 100 10.0
4Z120 12.0 26.0 83 12.0
4Z120F 12.0 26.0 100 12.0
4Z160 16.0 32.0 92 16.0
4Z160H 16.0 32.0 150 16.0
4Z200 20.0 38.0 104 20.0
特殊規格
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
4Z020 2 6 38 3
4Z020-50d4 2 6 50 4
4Z025 2.5 7 38 3
4Z025-d4 2.5 7 50 4
4Z030 3 8 57 6
4Z030E 3 8 75 6
4Z030F 3 8 100 6
4Z030H 3 8 150 6
4Z040E 4 11 75 6
4Z040F 4 11 100 6
4Z040H 4 11 150 6
4Z040I 4 11 200 6
4Z050E 5 13 75 6
4Z050F 5 13 100 6
4Z050H 5 13 150 6
4Z050I 5 13 200 6
4Z060E 6 13 75 6
4Z060F 6 13 100 6
4Z060H 6 13 150 6
4Z060I 6 13 200 6
4Z060J 6 13 250 6
4Z060K 6 13 300 6
4Z080F 8 19 100 8
4Z080H 8 19 150 8
4Z080I 8 19 200 8
4Z080J 8 19 250 8
4Z080K 8 19 300 8
4Z100H 10 22 150 10
4Z100I 10 22 200 10
4Z100J 10 22 250 10
4Z100K 10 22 300 10
4Z120H 12 26 150 12
4Z120I 12 26 200 12
4Z120J 12 26 250 12
4Z120K 12 26 300 12
4Z140 14 30 100 16
4Z140H 14 30 150 16
4Z140I 14 30 200 16
4Z140J 14 30 250 16
4Z140K 14 30 300 16
4Z160H 16 32 150 16
4Z160I 16 32 200 16
4Z160J 16 32 250 16
4Z160K 16 32 300 16
4Z180 18 36 92 18
4Z180H 18 36 150 20
4Z180I 18 36 200 20
4Z180J 18 36 250 20
4Z180K 18 36 300 20
4Z200H 20 38 150 20
4Z200I 20 38 200 20
4Z200J 20 38 250 20
4Z200K 20 38 300 20
4Z250 25 42 104 25
4Z250H 25 42 150 25
4Z250I 25 42 200 25
4Z250J 25 42 250 25
4Z250K 25 42 300 25
切削刀具-四刃高螺旋平铣刀
4刃平铣刀
切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状
NMG End Mills / 奈米微粒钨钢4刃数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
