• Solid Carbide - Super Micro Grain
  • Great for speedy and general cutting
  • 极细超微粒钨钢
  • 适合於高速及各式切削
  • 2BW
  • Ball Nose End Mills
  • 钨钢球头立铣刀
  • 材质-极细超微粒钨钢 刀刃螺旋角度30度 镀层-Nano TiAlN 工件硬度-HRC65

二刃圆头铣刀

切削刀具-二刃圆头铣刀
unit:mm

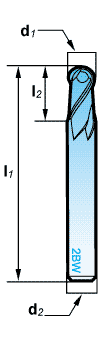

Order Code d1 l2 l1 d2
2BW010 R0.5 2 50 4
2BW015 R0.75 3 50 4
2BW020 R1 4 50 6
2BW030 R1.5 6 50 6
2BW040 R2 8 50 6
2BW060 R3 12 50 6
2BW080 R4 16 60 8
2BW100 R5 20 75 10
2BW120 R6 24 75 12
2BW160 R8 32 100 16
特殊規格
unit:mm
Order Code Φd1(e8/h10) I2 I1 Φd2(e6)
2BW010E R0.5 2 75 3
2BW010E-d4 R0.5 2 75 4
2BW010F R0.5 2 100 3
2BW010F-d4 R0.5 2 100 4
2BW010H R0.5 2 150 3
2BW010H-d4 R0.5 2 150 4
2BW020E R1 4 75 3
2BW020E-d4 R1 4 75 4
2BW020E-d6 R1 4 75 6
2BW020F R1 4 100 3
2BW020F-d4 R1 4 100 4
2BW020H R1 4 150 3
2BW020H-d4 R1 4 150 4
2BW00E R1.5 6 75 3
2BW00E-d4 R1.5 6 75 4
2BW00E-d6 R1.5 6 75 6
2BW00F R1.5 6 100 3
2BW00E-d4 R1.5 6 100 4
2BW00F-d6 R1.5 6 100 6
2BW040E R2 8 75 3
2BW040E-d4 R2 8 75 4
2BW040E-d6 R2 8 75 6
2BW040F-d6 R2 8 100 6
2BW040H R2 8 150 3
2BW040H-d4 R2 8 150 4
2BW040I R2 8 200 3
2BW040I-d4 R2 8 200 4
2BW050E R2.5 10 75 6
2BW050F R2.5 10 100 6
2BW050H R2.5 10 150 6
2BW050I R2.5 10 200 6
2BW050J R2.5 10 250 6
2BW050K R2.5 10 300 6
2BW060E R3 12 75 6
2BW060F R3 12 100 6
2BW060H R3 12 150 6
2BW060I R3 12 200 6
2BW060J R3 12 250 6
2BW060K R3 12 300 6
2BW070E R3.5 14 75 8
2BW070F R3.5 14 100 8
2BW070H R3.5 14 150 8
2BW070I R3.5 14 200 8
2BW070J R3.5 14 250 8
2BW070K R3.5 14 300 8
2BW080E R4 16 75 8
2BW080F R4 16 100 8
2BW080H R4 16 150 8
2BW080I R4 16 200 8
2BW080J R4 16 250 8
2BW080K R4 16 300 8
2BW100F R5 20 100 10
2BW100H R5 20 150 10
2BW100I R5 20 200 10
2BW100J R5 20 250 10
2BW100K R5 20 300 10
2BW120F R6 24 100 12
2BW120H R6 24 150 12
2BW120I R6 24 200 12
2BW120J R6 24 250 12
2BW120K R6 24 300 12
2BW140 R7 28 100 16
2BW140H R7 28 150 16
2BW140I R7 28 200 16
2BW140J R7 28 250 16
2BW140K R7 28 300 16
2BW160I R8 32 200 16
2BW160J R8 32 250 16
2BW160K R8 32 300 16
2BW200I R10 40 200 20
2BW200J R10 40 250 20
2BW200K R10 40 300 20
2BW250 R12.5 50 100 25
2BW250H R12.5 50 150 25
2BW250I R12.5 50 200 25
2BW250J R12.5 50 250 25
2BW250K R12.5 50 300 25
切削刀具-二刃圆头铣刀
2刃圆头铣刀
切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状 切削刀具适用工件形状
SMG Ball Nose End Mill / 极细超微粒钨钢2 刃圆头数控铣刀 / Schaftfraser / Fraises / Fresas con mango / Frese
