3NHT

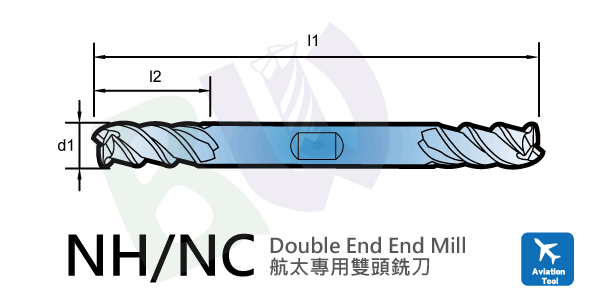

30度双端3刃高速钢平铣刀(有键槽)

30° 3 Flute HSS Double End End Mill(With Key Slot)

background
刀具,数控铣刀,航太专用 双端3刃高速钢平铣刀(有键槽)
  • 产品标准：符合NAS986标准
  • 产品用途：用於航太工业加工用刀具
  • 产品材质： in - HSS
unit:in
双端3刃高速钢平铣刀30度
Order Code Φd1 Φd2 l2 l1
3NHT1250019-30HB 0.1250 0.1874 0.1900 0.1900
3NHT1250038-30HB 0.1250 0.1874 0.3800 0.3800
3NHT1250050-30HB 0.1250 0.1874 0.5000 0.5000
3NHT1250075-30HB 0.1250 0.1874 0.7500 0.7500
3NHT1406022-30HB 0.1406 0.3749 0.2200 0.2200
3NHT1406038-30HB 0.1406 0.3749 0.3800 0.3800
3NHT1406050-30HB 0.1406 0.3749 0.5000 0.5000
3NHT1406075-30HB 0.1406 0.3749 0.7500 0.7500
3NHT1562023-30HB 0.1562 0.3749 0.2300 0.2300
3NHT1562050-30HB 0.1562 0.3749 0.5000 0.5000
3NHT1562075-30HB 0.1562 0.3749 0.7500 0.7500
3NHT1718025-30HB 0.1718 0.3749 0.2500 0.2500
3NHT1718050-30HB 0.1718 0.3749 0.5000 0.5000
3NHT1718075-30HB 0.1718 0.3749 0.7500 0.7500
3NHT1875038-30HB 0.1875 0.3749 0.3800 0.3800
3NHT1875050-30HB 0.1875 0.3749 0.5000 0.5000
3NHT1875075-30HB 0.1875 0.3749 0.7500 0.7500
3NHT1875100-30HB 0.1875 0.3749 1.0000 1.0000
3NHT2187036-30HB 0.2187 0.3749 0.3600 0.3600
3NHT2187050-30HB 0.2187 0.3749 0.5000 0.5000
3NHT2187075-30HB 0.2187 0.3749 0.7500 0.7500
3NHT2187100-30HB 0.2187 0.3749 1.0000 1.0000
3NHT3125050-30HB 0.3125 0.3749 0.5000 0.5000
3NHT3125075-30HB 0.3125 0.3749 0.7500 0.7500
3NHT3125100-30HB 0.3125 0.3749 1.0000 1.0000
3NHT3125125-30HB 0.3125 0.3749 1.2500 1.2500
3NHT3125150-30HB 0.3125 0.3749 1.5000 1.5000
3NHT3125175-30HB 0.3125 0.3749 1.7500 1.7500
3NHT3125200-30HB 0.3125 0.3749 2.0000 2.0000
3NHT3125225-30HB 0.3125 0.3749 2.2500 2.2500
3NHT3750050-30HB 0.3750 0.3749 0.5000 0.5000
3NHT3750075-30HB 0.3750 0.3749 0.7500 0.7500
3NHT3750100-30HB 0.3750 0.3749 1.0000 1.0000
3NHT3750125-30HB 0.3750 0.3749 1.2500 1.2500
3NHT3750150-30HB 0.3750 0.3749 1.5000 1.5000
3NHT3750175-30HB 0.3750 0.3749 1.7500 1.7500
3NHT3750200-30HB 0.3750 0.3749 2.0000 2.0000
3NHT3750225-30HB 0.3750 0.3749 2.2500 2.2500
3NHT3750250-30HB 0.3750 0.3749 2.5000 2.5000
3NHT3750275-30HB 0.3750 0.3749 2.7500 2.7500
3NHT3750300-30HB 0.3750 0.3749 3.0000 3.0000
3NHT4375050-30HB 0.4375 0.4998 0.5000 0.5000
3NHT4375075-30HB 0.4375 0.4998 0.7500 0.7500
3NHT4375100-30HB 0.4375 0.4998 1.0000 1.0000
3NHT4375125-30HB 0.4375 0.4998 1.2500 1.2500
3NHT4375150-30HB 0.4375 0.4998 1.5000 1.5000
3NHT4375175-30HB 0.4375 0.4998 1.7500 1.7500
3NHT4375200-30HB 0.4375 0.4998 2.0000 2.0000
3NHT4375225-30HB 0.4375 0.4998 2.2500 2.2500
3NHT4375250-30HB 0.4375 0.4998 2.5000 2.5000
3NHT4375275-30HB 0.4375 0.4998 2.7500 2.7500
3NHT4375300-30HB 0.4375 0.4998 3.0000 3.0000
3NHT4375325-30HB 0.4375 0.4998 3.2500 3.2500
3NHT4375350-30HB 0.4375 0.4998 3.5000 3.5000
3NHT5000050-30HB 0.5000 0.4998 0.5000 0.5000
3NHT5000075-30HB 0.5000 0.4998 0.7500 0.7500
3NHT5000100-30HB 0.5000 0.4998 1.0000 1.0000
3NHT5000125-30HB 0.5000 0.4998 1.2500 1.2500
3NHT5000150-30HB 0.5000 0.4998 1.5000 1.5000
3NHT5000175-30HB 0.5000 0.4998 1.7500 1.7500
3NHT5000200-30HB 0.5000 0.4998 2.0000 2.0000
3NHT5000225-30HB 0.5000 0.4998 2.2500 2.2500
3NHT5000250-30HB 0.5000 0.4998 2.5000 2.5000
3NHT5000275-30HB 0.5000 0.4998 2.7500 2.7500
3NHT5000300-30HB 0.5000 0.4998 3.0000 3.0000
3NHT5000325-30HB 0.5000 0.4998 3.2500 3.2500
3NHT5000350-30HB 0.5000 0.4998 3.5000 3.5000
3NHT5000375-30HB 0.5000 0.4998 3.7500 3.7500
3NHT6250075-30HB 0.6250 0.6248 0.7500 0.7500
3NHT6250100-30HB 0.6250 0.6248 1.0000 1.0000
3NHT6250125-30HB 0.6250 0.6248 1.2500 1.2500
3NHT6250150-30HB 0.6250 0.6248 1.5000 1.5000
3NHT6250175-30HB 0.6250 0.6248 1.7500 1.7500
3NHT6250200-30HB 0.6250 0.6248 2.0000 2.0000
3NHT6250225-30HB 0.6250 0.6248 2.2500 2.2500
3NHT6250250-30HB 0.6250 0.6248 2.5000 2.5000
3NHT6250275-30HB 0.6250 0.6248 2.7500 2.7500
3NHT6250300-30HB 0.6250 0.6248 3.0000 3.0000
3NHT6250325-30HB 0.6250 0.6248 3.2500 3.2500
3NHT6250350-30HB 0.6250 0.6248 3.5000 3.5000
3NHT6250375-30HB 0.6250 0.6248 3.7500 3.7500
3NHT6250400-30HB 0.6250 0.6248 4.0000 4.0000
3NHT6250425-30HB 0.6250 0.6248 4.2500 4.2500
3NHT6250450-30HB 0.6250 0.6248 4.5000 4.5000
3NHT6250475-30HB 0.6250 0.6248 4.7500 4.7500
3NHT7500075-30HB 0.7500 0.7498 0.7500 0.7500
3NHT7500100-30HB 0.7500 0.7498 1.0000 1.0000
3NHT7500125-30HB 0.7500 0.7498 1.2500 1.2500
3NHT7500150-30HB 0.7500 0.7498 1.5000 1.5000
3NHT7500175-30HB 0.7500 0.7498 1.7500 1.7500
3NHT7500200-30HB 0.7500 0.7498 2.0000 2.0000
3NHT7500225-30HB 0.7500 0.7498 2.2500 2.2500
3NHT7500250-30HB 0.7500 0.7498 2.5000 2.5000
3NHT7500275-30HB 0.7500 0.7498 2.7500 2.7500
3NHT7500300-30HB 0.7500 0.7498 3.0000 3.0000
3NHT7500325-30HB 0.7500 0.7498 3.2500 3.2500
3NHT7500350-30HB 0.7500 0.7498 3.5000 3.5000
3NHT7500375-30HB 0.7500 0.7498 3.7500 3.7500
3NHT7500400-30HB 0.7500 0.7498 4.0000 4.0000
3NHT7500425-30HB 0.7500 0.7498 4.2500 4.2500
3NHT7500450-30HB 0.7500 0.7498 4.5000 4.5000
3NHT7500475-30HB 0.7500 0.7498 4.7500 4.7500
3NHT7500500-30HB 0.7500 0.7498 5.0000 5.0000
3NHT7500525-30HB 0.7500 0.7498 5.2500 5.2500
3NHT7500550-30HB 0.7500 0.7498 5.5000 5.5000
3NHT8750100-30HB 0.8750 0.8748 1.0000 1.0000
3NHT8750125-30HB 0.8750 0.8748 1.2500 1.2500
3NHT8750150-30HB 0.8750 0.8748 1.5000 1.5000
3NHT8750175-30HB 0.8750 0.8748 1.7500 1.7500
3NHT8750200-30HB 0.8750 0.8748 2.0000 2.0000
3NHT8750225-30HB 0.8750 0.8748 2.2500 2.2500
3NHT8750250-30HB 0.8750 0.8748 2.5000 2.5000
3NHT8750275-30HB 0.8750 0.8748 2.7500 2.7500
3NHT8750300-30HB 0.8750 0.8748 3.0000 3.0000
3NHT8750325-30HB 0.8750 0.8748 3.2500 3.2500
3NHT8750350-30HB 0.8750 0.8748 3.5000 3.5000
3NHT8750375-30HB 0.8750 0.8748 3.7500 3.7500
3NHT8750400-30HB 0.8750 0.8748 4.0000 4.0000
3NHT8750425-30HB 0.8750 0.8748 4.2500 4.2500
3NHT8750450-30HB 0.8750 0.8748 4.5000 4.5000
3NHT8750475-30HB 0.8750 0.8748 4.7500 4.7500
3NHT8750500-30HB 0.8750 0.8748 5.0000 5.0000
3NHT8750525-30HB 0.8750 0.8748 5.2500 5.2500
3NHT8750550-30HB 0.8750 0.8748 5.5000 5.5000
3NHT8750575-30HB 0.8750 0.8748 5.7500 5.7500
3NHT8750600-30HB 0.8750 0.8748 6.0000 6.0000
3NHT8750625-30HB 0.8750 0.8748 6.2500 6.2500
3NHT8750650-30HB 0.8750 0.8748 6.5000 6.5000
3NHT8750675-30HB 0.8750 0.8748 6.7500 6.7500
3NHT8750700-30HB 0.8750 0.8748 7.0000 7.0000
3NHT10000100-30HB 1.0000 0.9998 1.0000 1.0000
3NHT10000125-30HB 1.0000 0.9998 1.2500 1.2500
3NHT10000150-30HB 1.0000 0.9998 1.5000 1.5000
3NHT10000175-30HB 1.0000 0.9998 1.7500 1.7500
3NHT10000200-30HB 1.0000 0.9998 2.0000 2.0000
3NHT10000225-30HB 1.0000 0.9998 2.2500 2.2500
3NHT10000250-30HB 1.0000 0.9998 2.5000 2.5000
3NHT10000275-30HB 1.0000 0.9998 2.7500 2.7500
3NHT10000300-30HB 1.0000 0.9998 3.0000 3.0000
3NHT10000325-30HB 1.0000 0.9998 3.2500 3.2500
3NHT10000350-30HB 1.0000 0.9998 3.5000 3.5000
3NHT10000375-30HB 1.0000 0.9998 3.7500 3.7500
3NHT10000400-30HB 1.0000 0.9998 4.0000 4.0000
3NHT10000425-30HB 1.0000 0.9998 4.2500 4.2500
3NHT10000450-30HB 1.0000 0.9998 4.5000 4.5000
3NHT10000475-30HB 1.0000 0.9998 4.7500 4.7500
3NHT10000500-30HB 1.0000 0.9998 5.0000 5.0000
3NHT10000525-30HB 1.0000 0.9998 5.2500 5.2500
3NHT10000550-30HB 1.0000 0.9998 5.5000 5.5000
3NHT10000575-30HB 1.0000 0.9998 5.7500 5.7500
3NHT10000600-30HB 1.0000 0.9998 6.0000 6.0000
3NHT10000625-30HB 1.0000 0.9998 6.2500 6.2500
3NHT10000650-30HB 1.0000 0.9998 6.5000 6.5000
3NHT10000675-30HB 1.0000 0.9998 6.7500 6.7500
3NHT10000700-30HB 1.0000 0.9998 7.0000 7.0000
3NHT10000725-30HB 1.0000 0.9998 7.2500 7.2500
3NHT10000750-30HB 1.0000 0.9998 7.5000 7.5000
3NHT10000775-30HB 1.0000 0.9998 7.7500 7.7500
3NHT10000800-30HB 1.0000 0.9998 8.0000 8.0000
