2NHT

30度双端2刃高速钢平铣刀(无键槽)

30° 2 Flute HSS Double End End Mill(No Key Slot)

background
刀具,数控铣刀,航太专用30度双端2刃高速钢平铣刀(无键槽)
  • 产品标准：符合NAS986标准
  • 产品用途：用於航太工业加工用刀具
  • 产品材质： in - HSS
unit:in

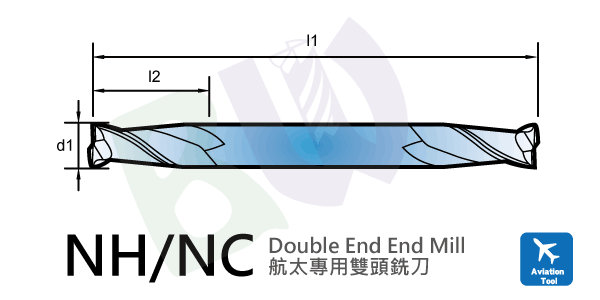

双端双端2刃高速钢平铣刀30度
Order Code Φd1 Φd2 l2 l1
2NHT1250019-30 0.1250 0.1874 0.1900 2.3200
2NHT1250038-30 0.1250 0.1874 0.3800 2.6900
2NHT1250050-30 0.1250 0.1874 0.5000 2.9400
2NHT1250075-30 0.1250 0.1874 0.7500 3.4400
2NHT1406022-30 0.1406 0.3749 0.2200 2.3100
2NHT1406038-30 0.1406 0.3749 0.3800 2.6300
2NHT1406050-30 0.1406 0.3749 0.5000 2.8800
2NHT1406075-30 0.1406 0.3749 0.7500 3.3800
2NHT1562023-30 0.1562 0.3749 0.2300 2.3600
2NHT1562050-30 0.1562 0.3749 0.5000 2.8800
2NHT1562075-30 0.1562 0.3749 0.7500 3.3800
2NHT1718025-30 0.1718 0.3749 0.2500 2.3800
2NHT1718050-30 0.1718 0.3749 0.5000 2.8800
2NHT1718075-30 0.1718 0.3749 0.7500 3.3800
2NHT1875038-30 0.1875 0.3749 0.3800 2.6300
2NHT1875050-30 0.1875 0.3749 0.5000 2.8800
2NHT1875075-30 0.1875 0.3749 0.7500 3.3800
2NHT1875100-30 0.1875 0.3749 1.0000 3.8800
2NHT2187036-30 0.2187 0.3749 0.3600 2.6100
2NHT2187050-30 0.2187 0.3749 0.5000 2.8800
2NHT2187075-30 0.2187 0.3749 0.7500 3.3800
2NHT2187100-30 0.2187 0.3749 1.0000 3.8800
2NHT3125050-30 0.3125 0.3749 0.5000 2.7500
2NHT3125075-30 0.3125 0.3749 0.7500 3.2500
2NHT3125100-30 0.3125 0.3749 1.0000 3.7500
2NHT3125125-30 0.3125 0.3749 1.2500 4.2500
2NHT3125150-30 0.3125 0.3749 1.5000 4.7500
2NHT3125175-30 0.3125 0.3749 1.7500 5.2500
2NHT3125200-30 0.3125 0.3749 2.0000 5.7500
2NHT3125225-30 0.3125 0.3749 2.2500 6.2500
2NHT3750050-30 0.3750 0.3749 0.5000 2.7500
2NHT3750075-30 0.3750 0.3749 0.7500 3.2500
2NHT3750100-30 0.3750 0.3749 1.0000 3.7500
2NHT3750125-30 0.3750 0.3749 1.2500 4.2500
2NHT3750150-30 0.3750 0.3749 1.5000 4.7500
2NHT3750175-30 0.3750 0.3749 1.7500 5.2500
2NHT3750200-30 0.3750 0.3749 2.0000 5.7500
2NHT3750225-30 0.3750 0.3749 2.2500 6.2500
2NHT3750250-30 0.3750 0.3749 2.5000 6.7500
2NHT3750275-30 0.3750 0.3749 2.7500 7.2500
2NHT3750300-30 0.3750 0.3749 3.0000 7.7500
2NHT4375050-30 0.4375 0.4998 0.5000 3.0000
2NHT4375075-30 0.4375 0.4998 0.7500 3.5000
2NHT4375100-30 0.4375 0.4998 1.0000 4.0000
2NHT4375125-30 0.4375 0.4998 1.2500 4.5000
2NHT4375150-30 0.4375 0.4998 1.5000 5.0000
2NHT4375175-30 0.4375 0.4998 1.7500 5.5000
2NHT4375200-30 0.4375 0.4998 2.0000 6.0000
2NHT4375225-30 0.4375 0.4998 2.2500 6.5000
2NHT4375250-30 0.4375 0.4998 2.5000 7.0000
2NHT4375275-30 0.4375 0.4998 2.7500 7.5000
2NHT4375300-30 0.4375 0.4998 3.0000 8.0000
2NHT4375325-30 0.4375 0.4998 3.2500 8.5000
2NHT4375350-30 0.4375 0.4998 3.5000 9.0000
2NHT5000050-30 0.5000 0.4998 0.5000 3.0000
2NHT5000075-30 0.5000 0.4998 0.7500 3.5000
2NHT5000100-30 0.5000 0.4998 1.0000 4.0000
2NHT5000125-30 0.5000 0.4998 1.2500 4.5000
2NHT5000150-30 0.5000 0.4998 1.5000 5.2500
2NHT5000175-30 0.5000 0.4998 1.7500 5.7500
2NHT5000200-30 0.5000 0.4998 2.0000 6.2500
2NHT5000225-30 0.5000 0.4998 2.2500 6.7500
2NHT5000250-30 0.5000 0.4998 2.5000 7.2500
2NHT5000275-30 0.5000 0.4998 2.7500 7.7500
2NHT5000300-30 0.5000 0.4998 3.0000 8.2500
2NHT5000325-30 0.5000 0.4998 3.2500 8.7500
2NHT5000350-30 0.5000 0.4998 3.5000 9.2500
2NHT5000375-30 0.5000 0.4998 3.7500 9.7500
2NHT6250075-30 0.6250 0.6248 0.7500 3.6300
2NHT6250100-30 0.6250 0.6248 1.0000 4.1300
2NHT6250125-30 0.6250 0.6248 1.2500 4.6300
2NHT6250150-30 0.6250 0.6248 1.5000 5.1300
2NHT6250175-30 0.6250 0.6248 1.7500 5.6300
2NHT6250200-30 0.6250 0.6248 2.0000 6.1300
2NHT6250225-30 0.6250 0.6248 2.2500 6.6300
2NHT6250250-30 0.6250 0.6248 2.5000 7.1300
2NHT6250275-30 0.6250 0.6248 2.7500 7.6300
2NHT6250300-30 0.6250 0.6248 3.0000 8.1300
2NHT6250325-30 0.6250 0.6248 3.2500 8.6300
2NHT6250350-30 0.6250 0.6248 3.5000 9.1300
2NHT6250375-30 0.6250 0.6248 3.7500 9.6300
2NHT6250400-30 0.6250 0.6248 4.0000 10.1300
2NHT6250425-30 0.6250 0.6248 4.2500 7.6300
2NHT6250450-30 0.6250 0.6248 4.5000 11.1300
2NHT6250475-30 0.6250 0.6248 4.7500 11.6300
2NHT7500075-30 0.7500 0.7498 0.7500 3.7500
2NHT7500100-30 0.7500 0.7498 1.0000 4.2500
2NHT7500125-30 0.7500 0.7498 1.2500 4.7500
2NHT7500150-30 0.7500 0.7498 1.5000 5.2500
2NHT7500175-30 0.7500 0.7498 1.7500 5.7500
2NHT7500200-30 0.7500 0.7498 2.0000 6.2500
2NHT7500225-30 0.7500 0.7498 2.2500 6.7500
2NHT7500250-30 0.7500 0.7498 2.5000 7.2500
2NHT7500275-30 0.7500 0.7498 2.7500 7.7500
2NHT7500300-30 0.7500 0.7498 3.0000 8.2500
2NHT7500325-30 0.7500 0.7498 3.2500 8.7500
2NHT7500350-30 0.7500 0.7498 3.5000 9.2500
2NHT7500375-30 0.7500 0.7498 3.7500 9.7500
2NHT7500400-30 0.7500 0.7498 4.0000 10.2500
2NHT7500425-30 0.7500 0.7498 4.2500 10.7500
2NHT7500450-30 0.7500 0.7498 4.5000 11.2500
2NHT7500475-30 0.7500 0.7498 4.7500 11.7500
2NHT7500500-30 0.7500 0.7498 5.0000 12.2500
2NHT7500525-30 0.7500 0.7498 5.2500 12.7500
2NHT7500550-30 0.7500 0.7498 5.5000 13.2500
2NHT8750100-30 0.8750 0.8748 1.0000 4.2500
2NHT8750125-30 0.8750 0.8748 1.2500 4.7500
2NHT8750150-30 0.8750 0.8748 1.5000 5.2500
2NHT8750175-30 0.8750 0.8748 1.7500 5.7500
2NHT8750200-30 0.8750 0.8748 2.0000 6.2500
2NHT8750225-30 0.8750 0.8748 2.2500 6.7500
2NHT8750250-30 0.8750 0.8748 2.5000 7.2500
2NHT8750275-30 0.8750 0.8748 2.7500 7.7500
2NHT8750300-30 0.8750 0.8748 3.0000 8.2500
2NHT8750325-30 0.8750 0.8748 3.2500 8.7500
2NHT8750350-30 0.8750 0.8748 3.5000 9.2500
2NHT8750375-30 0.8750 0.8748 3.7500 9.7500
2NHT8750400-30 0.8750 0.8748 4.0000 10.2500
2NHT8750425-30 0.8750 0.8748 4.2500 10.7500
2NHT8750450-30 0.8750 0.8748 4.5000 11.2500
2NHT8750475-30 0.8750 0.8748 4.7500 11.7500
2NHT8750500-30 0.8750 0.8748 5.0000 12.2500
2NHT8750525-30 0.8750 0.8748 5.2500 12.7500
2NHT8750550-30 0.8750 0.8748 5.5000 13.2500
2NHT8750575-30 0.8750 0.8748 5.7500 13.7500
2NHT8750600-30 0.8750 0.8748 6.0000 14.2500
2NHT8750625-30 0.8750 0.8748 6.2500 14.7500
2NHT8750650-30 0.8750 0.8748 6.5000 15.2500
2NHT8750675-30 0.8750 0.8748 6.7500 15.7500
2NHT8750700-30 0.8750 0.8748 7.0000 16.2500
2NHT10000100-30 1.0000 0.9998 1.0000 4.5000
2NHT10000125-30 1.0000 0.9998 1.2500 5.0000
2NHT10000150-30 1.0000 0.9998 1.5000 5.5000
2NHT10000175-30 1.0000 0.9998 1.7500 6.0000
2NHT10000200-30 1.0000 0.9998 2.0000 6.5000
2NHT10000225-30 1.0000 0.9998 2.2500 7.0000
2NHT10000250-30 1.0000 0.9998 2.5000 7.5000
2NHT10000275-30 1.0000 0.9998 2.7500 8.0000
2NHT10000300-30 1.0000 0.9998 3.0000 8.5000
2NHT10000325-30 1.0000 0.9998 3.2500 9.0000
2NHT10000350-30 1.0000 0.9998 3.5000 9.5000
2NHT10000375-30 1.0000 0.9998 3.7500 10.0000
2NHT10000400-30 1.0000 0.9998 4.0000 10.5000
2NHT10000425-30 1.0000 0.9998 4.2500 11.0000
2NHT10000450-30 1.0000 0.9998 4.5000 11.5000
2NHT10000475-30 1.0000 0.9998 4.7500 12.0000
2NHT10000500-30 1.0000 0.9998 5.0000 12.5000
2NHT10000525-30 1.0000 0.9998 5.2500 13.0000
2NHT10000550-30 1.0000 0.9998 5.5000 13.5000
2NHT10000575-30 1.0000 0.9998 5.7500 14.0000
2NHT10000600-30 1.0000 0.9998 6.0000 14.5000
2NHT10000625-30 1.0000 0.9998 6.2500 15.0000
2NHT10000650-30 1.0000 0.9998 6.5000 15.5000
2NHT10000675-30 1.0000 0.9998 6.7500 16.0000
2NHT10000700-30 1.0000 0.9998 7.0000 16.5000
2NHT10000725-30 1.0000 0.9998 7.2500 17.0000
2NHT10000750-30 1.0000 0.9998 7.5000 17.5000
2NHT10000775-30 1.0000 0.9998 7.7500 18.0000
2NHT10000800-30 1.0000 0.9998 8.0000 18.5000
