刀具-金刚石镀层二倍刃长气动领先阶梯钻头 | 航太用刀具 | 数控刀具,铣刀,刀具,钨钢,切削刀具和钻头制造供应商碧威股份有限公司Bewise Inc.

DD1285-1120-50-2-12-2LD

2

0.1285

0.112

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1405-1240-50-2-12-2LD

2

0.1405

0.124

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1440-1280-50-2-12-2LD

2

0.1440

0.128

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1495-1350-50-2-12-2LD

2

0.1495

0.135

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1540-1400-50-2-12-2LD

2

0.1540

0.140

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1570-1430-50-2-12-2LD

2

0.1570

0.143

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1610-1460-50-2-12-2LD

2

0.1610

0.146

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1696-1530-50-2-12-2LD

2

0.1696

0.153

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1730-1560-50-2-12-2LD

2

0.1730

0.156

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1800-1650-50-2-12-2LD

2

0.1800

0.165

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1850-1710-50-2-12-2LD

2

0.1850

0.171

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1890-1760-50-2-12-2LD

2

0.1890

0.176

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1935-1760-50-2-12-2LD

2

0.1935

0.176

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD1990-1870-50-2-12-2LD

2

0.1990

0.187

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2030-1870-50-2-12-2LD

2

0.2030

0.187

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2055-1900-50-2-12-2LD

2

0.2055

0.190

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2130-1980-50-2-12-2LD

2

0.2130

0.198

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2210-2050-50-2-12-2LD

2

0.2210

0.205

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2340-2180-50-2-12-2LD

2

0.2340

0.218

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2380-2200-50-2-12-2LD

2

0.2380

0.220

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2460-2340-50-2-12-2LD

2

0.2460

0.234

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2570-2410-50-2-12-2LD

2

0.2570

0.241

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2658-2490-50-2-12-2LD

2

0.2658

0.249

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2720-2560-50-2-12-2LD

2

0.2720

0.256

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2810-2650-50-2-12-2LD

2

0.2810

0.265

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2900-2780-50-2-12-2LD

2

0.2900

0.278

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD2969-2800-50-2-12-2LD

2

0.2969

0.280

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3125-2960-50-2-12-2LD

2

0.3125

0.296

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3230-3120-50-2-12-2LD

2

0.3230

0.312

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3320-3120-50-2-12-2LD

2

0.3320

0.312

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3438-3270-50-2-12-2LD

2

0.3438

0.327

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3580-3430-50-2-12-2LD

2

0.3580

0.343

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3680-3570-50-2-12-2LD

2

0.3680

0.357

0.5

2.5

0.25

25°

135°

3

1/4-28

0.25

DD3770-3590-50-4-12-2LD

2

0.3770

0.359

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD3906-3760-50-4-12-2LD

2

0.3906

0.376

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD4040-3900-50-4-12-2LD

2

0.4040

0.390

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD4130-3900-50-4-12-2LD

2

0.4130

0.390

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD4375-4210-50-4-12-2LD

2

0.4375

0.421

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD4688-4820-50-4-12-2LD

2

0.4688

0.452

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD5000-4830-50-4-12-2LD

2

0.5000

0.483

0.5

2.5

0.25

25°

135°

3

3/8-24

0.25

DD5625-5460-50-4-16-2LD

2

0.5625

0.546

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD6250-5920-50-4-16-2LD

2

0.6250

0.592

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD6875-6550-50-4-16-2LD

2

0.6875

0.655

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD7500-7180-50-4-16-2LD

2

0.7500

0.718

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD8125-7490-50-4-16-2LD

2

0.8125

0.749

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD8750-8430-50-4-16-2LD

2

0.8750

0.843

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD9375-9050-50-4-16-2LD

2

0.9375

0.905

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD10000-9680-50-4-16-2LD

2

1.0000

0.968

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD10625-10300-50-416-2LD

2

1.0625

1.030

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD11250-10920-50-4-16-2LD

2

1.1250

1.092

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD11875-11550-50-4-16-2LD

2

1.1875

1.155

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD12500-12170-50-4-16-2LD

2

1.2500

1.217

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD13126-12810-50-4-16-2LD

2

1.3126

1.281

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD13750-13420-50-4-16-2LD

2

1.3750

1.342

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD14375-14060-50-4-16-2LD

2

1.4375

1.406

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

DD15000-14670-50-4-16-2LD

2

1.5000

1.467

0.5

3.5

0.25

25°

135°

4

3/8-24

0.25

金刚石鍍層二倍刃長氣動領先階梯鑽頭,数控刀具,数控刀具,刀具,銑刀,鎢鋼,鎢鋼刀製造商

钨钢二倍刃长气动领先阶梯钻头

Carbide Double Margin Drill

航太专用刀具

最新消息

unit:in

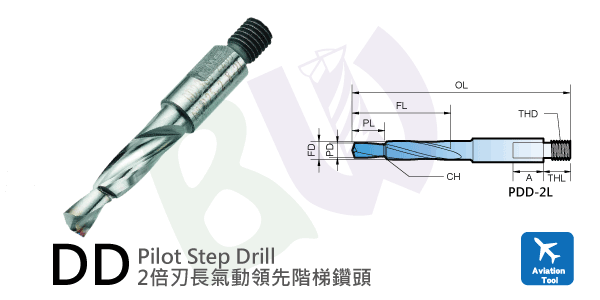

DD领航阶梯钻头-螺纹牙钨钢 + 金刚石镀层　Piloted Double Margin Drill
型号	刃数	大径直径	领航直径	小径长度	标准沟深长度	板手长度	沟深螺旋角度	倒角角度	全长	螺纹牙	螺纹牙长度
型号	Z	FD(in)	PD(in)	PL(in)	FL(in)	A	度＃F	CH	OL(in)	in	in
Order Code	UNITS	Body DIA.	Pilot DIA.	Pilot Length	Flute Length	Wrench Flats	Helix Angle	Pilot Angle	Total Length	Threaded Shank	Threaded Length
Order Code	Z	FD(in)	PD(in)	PL(in)	FL(in)	A	Angle	Angle	OL(in)	in	in
DD1285-1120-50-2-12-2LD	2	0.1285	0.112	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1360-1190-50-2-12-2LD	2	0.1360	0.119	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1405-1240-50-2-12-2LD	2	0.1405	0.124	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1460-1240-50-2-12-2LD	2	0.1460	0.124	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1440-1280-50-2-12-2LD	2	0.1440	0.128	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1470-1280-50-2-12-2LD	2	0.1470	0.128	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1495-1350-50-2-12-2LD	2	0.1495	0.135	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1520-1350-50-2-12-2LD	2	0.1520	0.135	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1540-1400-50-2-12-2LD	2	0.1540	0.140	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1562-1400-50-2-12-2LD	2	0.1562	0.140	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1570-1430-50-2-12-2LD	2	0.1570	0.143	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1590-1460-50-2-12-2LD	2	0.1590	0.146	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1610-1460-50-2-12-2LD	2	0.1610	0.146	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1660-1510-50-2-12-2LD	2	0.1660	0.151	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1696-1530-50-2-12-2LD	2	0.1696	0.153	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1719-1550-50-2-12-2LD	2	0.1719	0.155	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1730-1560-50-2-12-2LD	2	0.1730	0.156	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1770-1600-50-2-12-2LD	2	0.1770	0.160	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1800-1650-50-2-12-2LD	2	0.1800	0.165	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1820-1650-50-2-12-2LD	2	0.1820	0.165	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1850-1710-50-2-12-2LD	2	0.1850	0.171	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1875-1710-50-2-12-2LD	2	0.1875	0.171	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1890-1760-50-2-12-2LD	2	0.1890	0.176	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1910-1760-50-2-12-2LD	2	0.1910	0.176	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1935-1760-50-2-12-2LD	2	0.1935	0.176	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1960-1790-50-2-12-2LD	2	0.1960	0.179	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD1990-1870-50-2-12-2LD	2	0.1990	0.187	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2010-1870-50-2-12-2LD	2	0.2010	0.187	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2030-1870-50-2-12-2LD	2	0.2030	0.187	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2040-1900-50-2-12-2LD	2	0.2040	0.190	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2055-1900-50-2-12-2LD	2	0.2055	0.190	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2090-1900-50-2-12-2LD	2	0.2090	0.190	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2130-1980-50-2-12-2LD	2	0.2130	0.198	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2188-2020-50-2-12-2LD	2	0.2188	0.202	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2210-2050-50-2-12-2LD	2	0.2210	0.205	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2280-2120-50-2-12-2LD	2	0.2280	0.212	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2340-2180-50-2-12-2LD	2	0.2340	0.218	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2344-2180-50-2-12-2LD	2	0.2344	0.218	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2380-2200-50-2-12-2LD	2	0.2380	0.220	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2420-2270-50-2-12-2LD	2	0.2420	0.227	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2460-2340-50-2-12-2LD	2	0.2460	0.234	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2500-2340-50-2-12-2LD	2	0.2500	0.234	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2570-2410-50-2-12-2LD	2	0.2570	0.241	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2610-2450-50-2-12-2LD	2	0.2610	0.245	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2658-2490-50-2-12-2LD	2	0.2658	0.249	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2600-2490-50-2-12-2LD	2	0.2600	0.249	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2720-2560-50-2-12-2LD	2	0.2720	0.256	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2770-2650-50-2-12-2LD	2	0.2770	0.265	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2810-2650-50-2-12-2LD	2	0.2810	0.265	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2812-2650-50-2-12-2LD	2	0.2812	0.265	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2900-2780-50-2-12-2LD	2	0.2900	0.278	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2950-2800-50-2-12-2LD	2	0.2950	0.280	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD2969-2800-50-2-12-2LD	2	0.2969	0.280	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3020-2890-50-2-12-2LD	2	0.3020	0.289	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3125-2960-50-2-12-2LD	2	0.3125	0.296	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3160-3010-50-2-12-2LD	2	0.3160	0.301	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3230-3120-50-2-12-2LD	2	0.3230	0.312	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3281-3120-50-2-12-2LD	2	0.3281	0.312	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3320-3120-50-2-12-2LD	2	0.3320	0.312	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3390-3270-50-2-12-2LD	2	0.3390	0.327	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3438-3270-50-2-12-2LD	2	0.3438	0.327	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3480-3310-50-2-12-2LD	2	0.3480	0.331	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3580-3430-50-2-12-2LD	2	0.3580	0.343	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3594-3430-50-2-12-2LD	2	0.3594	0.343	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3680-3570-50-2-12-2LD	2	0.3680	0.357	0.5	2.5	0.25	25°	135°	3	1/4-28	0.25
DD3750-3590-50-4-12-2LD	2	0.3750	0.359	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD3770-3590-50-4-12-2LD	2	0.3770	0.359	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD3860-3590-50-4-12-2LD	2	0.3860	0.359	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD3906-3760-50-4-12-2LD	2	0.3906	0.376	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD3970-3850-50-4-12-2LD	2	0.3970	0.385	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4040-3900-50-4-12-2LD	2	0.4040	0.390	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4062-3900-50-4-12-2LD	2	0.4062	0.390	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4130-3900-50-4-12-2LD	2	0.4130	0.390	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4219-4050-50-4-12-2LD	2	0.4219	0.405	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4375-4210-50-4-12-2LD	2	0.4375	0.421	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4531-4370-50-4-12-2LD	2	0.4531	0.437	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4688-4820-50-4-12-2LD	2	0.4688	0.452	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD4844-4680-50-4-12-2LD	2	0.4844	0.468	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD5000-4830-50-4-12-2LD	2	0.5000	0.483	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD5312-5140-50-4-12-2LD	2	0.5312	0.514	0.5	2.5	0.25	25°	135°	3	3/8-24	0.25
DD5625-5460-50-4-16-2LD	2	0.5625	0.546	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD5938-5610-50-4-16-2LD	2	0.5938	0.561	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD6250-5920-50-4-16-2LD	2	0.6250	0.592	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD6562-6240-50-4-16-2LD	2	0.6562	0.624	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD6875-6550-50-4-16-2LD	2	0.6875	0.655	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD7188-6860-50-4-16-2LD	2	0.7188	0.686	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD7500-7180-50-4-16-2LD	2	0.7500	0.718	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD7812-7490-50-4-16-2LD	2	0.7812	0.749	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD8125-7490-50-4-16-2LD	2	0.8125	0.749	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD8438-8110-50-4-16-2LD	2	0.8438	0.811	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD8750-8430-50-4-16-2LD	2	0.8750	0.843	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD9062-8740-50-416-2LD	2	0.9062	0.874	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD9375-9050-50-4-16-2LD	2	0.9375	0.905	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD9688-9360-50-4-16-2LD	2	0.9688	0.936	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD10000-9680-50-4-16-2LD	2	1.0000	0.968	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD10313-10000-50-4-16-2LD	2	1.0313	1.000	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD10625-10300-50-416-2LD	2	1.0625	1.030	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD10938-10620-50-4-16-2LD	2	1.0938	1.062	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD11250-10920-50-4-16-2LD	2	1.1250	1.092	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD11562-11240-50-4-16-2LD	2	1.1562	1.124	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD11875-11550-50-4-16-2LD	2	1.1875	1.155	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD12188-11870-50-4-16-2LD	2	1.2188	1.187	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD12500-12170-50-4-16-2LD	2	1.2500	1.217	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD12812-12490-50-4-16-2LD	2	1.2812	1.249	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD13126-12810-50-4-16-2LD	2	1.3126	1.281	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD13438-13120-50-4-16-2LD	2	1.3438	1.312	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD13750-13420-50-4-16-2LD	2	1.3750	1.342	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD14062-13740-50-4-16-2LD	2	1.4062	1.374	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD14375-14060-50-4-16-2LD	2	1.4375	1.406	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD14688-14370-50-4-16-2LD	2	1.4688	1.437	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
DD15000-14670-50-4-16-2LD	2	1.5000	1.467	0.5	3.5	0.25	25°	135°	4	3/8-24	0.25
