ACD

航太钨钢钻头前端角度140°螺旋角度35°(无镀层)

Aviation Carbide Drill(No Coating)

background
刀具,数控铣刀,航太钨钢钻头前端角度140°螺旋角度35°(无镀层)
  • 产品标准：符合DIN1897标准
  • 产品用途：用於航太工业加工用刀具
  • 产品材质：SMG
  • 钻头刃数：2刃
  • 镀层：无镀层
unit:mm

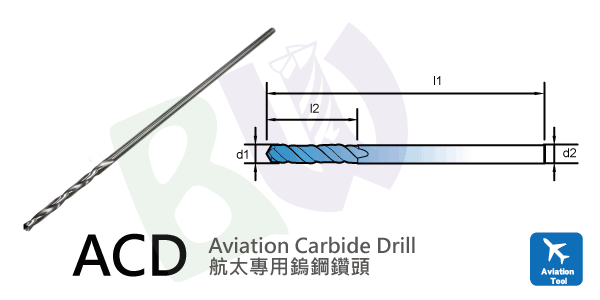

航太专用钨钢钻头 - 前端角度140° - 螺旋角度35°(无镀层)
Order Code Φd1 Φd2 l2 l1
2DHAUC050-140-35 0.50 3 2.5 20
2DHAUC060-140-35 0.60 3 3 21
2DHAUC070-140-35 0.70 3 3.5 23
2DHAUC080-140-35 0.80 3 4 24
2DHAUC090-140-35 0.90 3 4.5 25
2DHAUC100-140-35 1.00 3 5 26
2DHAUC110-140-35 1.10 3 6 28
2DHAUC120-140-35 1.20 3 6 30
2DHAUC130-140-35 1.30 3 7 30
2DHAUC140-140-35 1.40 3 7 32
2DHAUC150-140-35 1.50 3 8 32
2DHAUC160-140-35 1.60 3 8 34
2DHAUC170-140-35 1.70 3 9 36
2DHAUC180-140-35 1.80 3 9 36
2DHAUC190-140-35 1.90 3 10 38
2DHAUC200-140-35 2.00 3 10 38
2DHAUC210-140-35 2.10 3 11 38
2DHAUC220-140-35 2.20 3 11 40
2DHAUC230-140-35 2.30 3 12 43
2DHAUC240-140-35 2.40 3 12 43
2DHAUC250-140-35 2.50 3 13 43
2DHAUC260-140-35 2.60 3 13 46
2DHAUC270-140-35 2.70 3 14 46
2DHAUC280-140-35 2.80 3 14 46
2DHAUC290-140-35 2.90 3 15 46
2DHAUC300-140-35 3.00 3 15 46
2DHAUC310-140-35 3.10 4 16 46
2DHAUC320-140-35 3.20 4 16 49
2DHAUC330-140-35 3.30 4 16 49
2DHAUC340-140-35 3.40 4 17 49
2DHAUC350-140-35 3.50 4 18 52
2DHAUC360-140-35 3.60 4 18 52
2DHAUC370-140-35 3.70 4 19 52
2DHAUC380-140-35 3.80 4 19 55
2DHAUC390-140-35 3.90 4 20 55
2DHAUC400-140-35 4.00 4 20 55
2DHAUC410-140-35 4.10 6 21 55
2DHAUC420-140-35 4.20 6 21 55
2DHAUC430-140-35 4.30 6 22 55
2DHAUC440-140-35 4.40 6 22 55
2DHAUC450-140-35 4.50 6 23 58
2DHAUC460-140-35 4.60 6 23 58
2DHAUC470-140-35 4.70 6 24 58
2DHAUC480-140-35 4.80 6 24 62
2DHAUC490-140-35 4.90 6 25 62
2DHAUC500-140-35 5.00 6 25 62
2DHAUC510-140-35 5.10 8 26 62
2DHAUC520-140-35 5.20 8 26 62
2DHAUC530-140-35 5.30 8 27 62
2DHAUC540-140-35 5.40 8 27 62
2DHAUC550-140-35 5.50 8 28 66
2DHAUC560-140-35 5.60 8 28 66
2DHAUC570-140-35 5.70 8 29 66
2DHAUC580-140-35 5.80 8 29 66
2DHAUC590-140-35 5.90 8 30 66
2DHAUC600-140-35 6.00 8 30 66
2DHAUC610-140-35 6.10 10 31 66
2DHAUC620-140-35 6.20 10 31 70
2DHAUC630-140-35 6.30 10 32 70
2DHAUC640-140-35 6.40 10 32 70
2DHAUC650-140-35 6.50 10 33 70
2DHAUC660-140-35 6.60 10 33 70
2DHAUC670-140-35 6.70 10 34 70
2DHAUC680-140-35 6.80 10 34 74
2DHAUC690-140-35 6.90 10 35 74
2DHAUC700-140-35 7.00 10 35 74
2DHAUC710-140-35 7.10 12 36 74
2DHAUC720-140-35 7.20 12 36 74
2DHAUC730-140-35 7.30 12 37 74
2DHAUC740-140-35 7.40 12 37 74
2DHAUC750-140-35 7.50 12 38 74
2DHAUC760-140-35 7.60 12 38 74
2DHAUC770-140-35 7.70 12 39 74
2DHAUC780-140-35 7.80 12 39 79
2DHAUC790-140-35 7.90 12 40 79
2DHAUC800-140-35 8.00 12 40 79
2DHAUC810-140-35 8.10 14 41 79
2DHAUC820-140-35 8.20 14 41 79
2DHAUC830-140-35 8.30 14 42 79
2DHAUC840-140-35 8.40 14 42 79
2DHAUC850-140-35 8.50 14 43 79
2DHAUC860-140-35 8.60 14 43 79
2DHAUC870-140-35 8.70 14 44 79
2DHAUC880-140-35 8.80 14 44 84
2DHAUC890-140-35 8.90 14 45 84
2DHAUC900-140-35 9.00 14 45 84
2DHAUC910-140-35 9.10 16 46 84
2DHAUC920-140-35 9.20 16 46 84
2DHAUC930-140-35 9.30 16 47 84
2DHAUC940-140-35 9.40 16 47 84
2DHAUC950-140-35 9.50 16 48 84
2DHAUC960-140-35 9.60 16 48 84
2DHAUC970-140-35 9.70 16 49 84
2DHAUC980-140-35 9.80 16 49 89
2DHAUC990-140-35 9.90 16 50 89
2DHAUC1000-140-35 10.00 16 50 89
2DHAUC1010-140-35 10.10 16 51 89
2DHAUC1020-140-35 10.20 16 51 89
2DHAUC1030-140-35 10.30 16 52 89
2DHAUC1040-140-35 10.40 16 52 89
2DHAUC1050-140-35 10.50 16 53 89
2DHAUC1060-140-35 10.60 16 53 89
2DHAUC1070-140-35 10.70 16 54 89
2DHAUC1080-140-35 10.80 16 54 95
2DHAUC1090-140-35 10.90 16 55 95
2DHAUC1100-140-35 11.00 16 55 95
2DHAUC1110-140-35 11.10 18 56 95
2DHAUC1120-140-35 11.20 18 56 95
2DHAUC1130-140-35 11.30 18 57 95
2DHAUC1140-140-35 11.40 18 57 95
2DHAUC1150-140-35 11.50 18 58 95
2DHAUC1160-140-35 11.60 18 58 95
2DHAUC1170-140-35 11.70 18 59 95
2DHAUC1180-140-35 11.80 18 59 95
2DHAUC1190-140-35 11.90 18 60 95
2DHAUC1200-140-35 12.00 18 60 95
2DHAUC1210-140-35 12.10 18 61 102
2DHAUC1220-140-35 12.20 18 61 102
2DHAUC1230-140-35 12.30 18 62 102
2DHAUC1240-140-35 12.40 18 62 102
2DHAUC1250-140-35 12.50 18 63 102
2DHAUC1260-140-35 12.60 18 63 102
2DHAUC1270-140-35 12.70 18 64 102
2DHAUC1280-140-35 12.80 18 64 102
2DHAUC1290-140-35 12.90 18 65 102
2DHAUC1300-140-35 13.00 18 65 102
2DHAUC1310-140-35 13.10 18 66 102
2DHAUC1320-140-35 13.20 18 66 102
2DHAUC1330-140-35 13.30 18 67 102
2DHAUC1340-140-35 13.40 18 67 102
2DHAUC1350-140-35 13.50 18 68 107
2DHAUC1360-140-35 13.60 18 68 107
2DHAUC1370-140-35 13.70 18 69 107
2DHAUC1380-140-35 13.80 18 69 107
2DHAUC1390-140-35 13.90 18 70 107
2DHAUC1400-140-35 14.00 18 70 107
2DHAUC1410-140-35 14.10 18 71 111
2DHAUC1420-140-35 14.20 18 71 111
2DHAUC1430-140-35 14.30 18 72 111
2DHAUC1440-140-35 14.40 18 72 111
2DHAUC1450-140-35 14.50 18 73 111
2DHAUC1460-140-35 14.60 18 73 111
2DHAUC1470-140-35 14.70 18 74 111
2DHAUC1480-140-35 14.80 18 74 111
2DHAUC1490-140-35 14.90 18 75 111
2DHAUC1500-140-35 15.00 18 75 111
2DHAUC1510-140-35 15.10 18 76 115
2DHAUC1520-140-35 15.20 18 76 115
2DHAUC1530-140-35 15.30 18 77 115
2DHAUC1540-140-35 15.40 18 77 115
2DHAUC1550-140-35 15.50 18 78 115
2DHAUC1560-140-35 15.60 18 78 115
2DHAUC1570-140-35 15.70 18 79 115
2DHAUC1580-140-35 15.80 18 79 115
2DHAUC1590-140-35 15.90 18 80 115
2DHAUC1600-140-35 16.00 18 80 115
2DHAUC1610-140-35 16.10 20 81 119
2DHAUC1620-140-35 16.20 20 81 119
2DHAUC1630-140-35 16.30 20 82 119
2DHAUC1640-140-35 16.40 20 82 119
2DHAUC1650-140-35 16.50 20 83 119
2DHAUC1660-140-35 16.60 20 83 119
2DHAUC1670-140-35 16.70 20 84 119
2DHAUC1680-140-35 16.80 20 84 119
2DHAUC1690-140-35 16.90 20 85 119
2DHAUC1700-140-35 17.00 20 85 119
2DHAUC1710-140-35 17.10 20 86 123
2DHAUC1720-140-35 17.20 20 86 123
2DHAUC1730-140-35 17.30 20 87 123
2DHAUC1740-140-35 17.40 20 87 123
2DHAUC1750-140-35 17.50 20 88 123
2DHAUC1760-140-35 17.60 20 88 123
2DHAUC1770-140-35 17.70 20 89 123
2DHAUC1780-140-35 17.80 20 89 123
2DHAUC1790-140-35 17.90 20 90 123
2DHAUC1800-140-35 18.00 20 90 123
2DHAUC1810-140-35 18.10 20 91 127
2DHAUC1820-140-35 18.20 20 91 127
2DHAUC1830-140-35 18.30 20 92 127
2DHAUC1840-140-35 18.40 20 92 127
2DHAUC1850-140-35 18.50 20 93 127
2DHAUC1860-140-35 18.60 20 93 127
2DHAUC1870-140-35 18.70 20 94 127
2DHAUC1880-140-35 18.80 20 94 127
2DHAUC1890-140-35 18.90 20 95 127
2DHAUC1900-140-35 19.00 20 95 127
2DHAUC1910-140-35 19.10 20 96 131
2DHAUC1920-140-35 19.20 20 96 131
2DHAUC1930-140-35 19.30 20 97 131
2DHAUC1940-140-35 19.40 20 97 131
2DHAUC1950-140-35 19.50 20 98 131
2DHAUC1960-140-35 19.60 20 98 131
2DHAUC1970-140-35 19.70 20 99 131
2DHAUC1980-140-35 19.80 20 99 131
2DHAUC1990-140-35 19.90 20 100 131
2DHAUC2000-140-35 20.00 20 100 131
2DHAUC2010-140-35 20.10 24 101 136
2DHAUC2020-140-35 20.20 24 101 136
2DHAUC2030-140-35 20.30 24 102 136
2DHAUC2040-140-35 20.40 24 102 136
2DHAUC2050-140-35 20.50 24 103 136
2DHAUC2060-140-35 20.60 24 103 136
2DHAUC2070-140-35 20.70 24 104 136
2DHAUC2080-140-35 20.80 24 104 136
2DHAUC2090-140-35 20.90 24 105 136
2DHAUC2100-140-35 21.00 24 105 136
2DHAUC2110-140-35 21.10 24 106 141
2DHAUC2120-140-35 21.20 24 106 141
2DHAUC2130-140-35 21.30 24 107 141
2DHAUC2140-140-35 21.40 24 107 141
2DHAUC2150-140-35 21.50 24 108 141
2DHAUC2160-140-35 21.60 24 108 141
2DHAUC2170-140-35 21.70 24 109 141
2DHAUC2180-140-35 21.80 24 109 141
2DHAUC2190-140-35 21.90 24 110 141
2DHAUC2200-140-35 22.00 24 110 141
2DHAUC2210-140-35 22.10 24 111 141
2DHAUC2220-140-35 22.20 24 111 141
2DHAUC2230-140-35 22.30 24 112 141
2DHAUC2240-140-35 22.40 24 112 141
2DHAUC2250-140-35 22.50 24 113 146
2DHAUC2260-140-35 22.60 24 113 146
2DHAUC2270-140-35 22.70 24 114 146
2DHAUC2280-140-35 22.80 24 114 146
2DHAUC2290-140-35 22.90 24 115 146
2DHAUC2300-140-35 23.00 24 115 146
2DHAUC2310-140-35 23.10 24 116 146
2DHAUC2320-140-35 23.20 24 116 146
2DHAUC2330-140-35 23.30 24 117 146
2DHAUC2340-140-35 23.40 24 117 146
2DHAUC2350-140-35 23.50 24 118 146
2DHAUC2360-140-35 23.60 24 118 146
2DHAUC2370-140-35 23.70 24 119 146
2DHAUC2380-140-35 23.80 24 119 151
2DHAUC2390-140-35 23.90 24 120 151
2DHAUC2400-140-35 24.00 24 120 151
2DHAUC2410-140-35 24.10 28 121 151
2DHAUC2420-140-35 24.20 28 121 151
2DHAUC2430-140-35 24.30 28 122 151
2DHAUC2440-140-35 24.40 28 122 151
2DHAUC2450-140-35 24.50 28 123 151
2DHAUC2460-140-35 24.60 28 123 151
2DHAUC2470-140-35 24.70 28 124 151
2DHAUC2480-140-35 24.80 28 124 151
2DHAUC2490-140-35 24.90 28 125 151
2DHAUC2500-140-35 25.00 28 125 151
